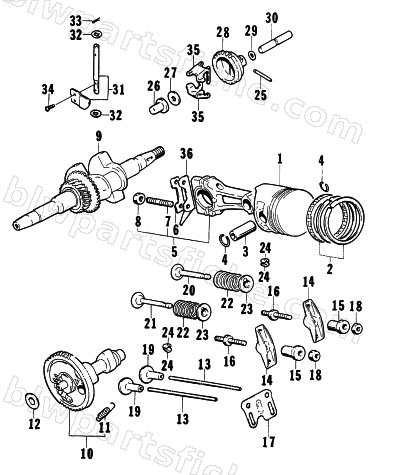

1997 Arctic Cat 2500G — PISTON AND CRANKSHAFT ASSEMBLY
1997 2500G
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-496 | PISTON | 1 | $104.95 | |
| 2 | 0691-497 | RING SET, PISTON | 1 | $74.95 | |
| 3 | 0691-498 | PIN, PISTON | 1 | $17.38 | |
| 4 | 3003-537 | CIRCLIP,PISTON PIN,M18 | 1 | $2.75 | |
| 5 | 0691-923 | ROD SET, CONNECTING | 1 | $167.95 | |
| 6 | 0691-253 | PLATE, LOCK | 1 | $2.89 | |
| 8 | 3007-416 | NUT | 1 | $2.75 | |
| 9 | 0691-913 | CRANKSHAFT ASS'Y | 1 | $324.95 | |
| 10 | 0691-914 | CAMSHAFT | 1 | $267.95 | |
| 11 | 0691-380 | SPRING,M6 | 1 | $3.71 | |
| 12 | 0691-840 | WASHER,M14X26 | 1 | $4.68 | |
| 13 | 0691-503 | ROD, PUSH | 1 | $14.20 | |
| 14 | 0691-412 | ARM, ROCKER | 1 | $10.97 | |
| 15 | 0691-413 | PIVOT | 1 | $19.25 | |
| 16 | 0691-414 | BOLT, PIVOT STUD | 1 | $6.95 | |
| 17 | 0691-415 | GUIDE, PUSH ROD | 1 | $12.95 | |
| 18 | 0691-016 | NUT, 6MM | 1 | $2.75 | |
| 19 | 0691-406 | TAPPET | 1 | $32.95 | |
| 20 | 0693-230 | VALVE, INTAKE | 1 | $27.95 | |
| 21 | 0693-231 | VALVE, EXHAUST | 1 | $51.95 | |
| 22 | 0694-036 | SPRING,VALVE '02 120 F/C | 1 | $13.73 | |
| 23 | 0691-411 | RETAINER, VALVE SPRING | 1 | $7.72 | |
| 24 | 0693-281 | COTTER, VALVE | 1 | $3.16 | |
| 25 | 0693-532 | PIN, CENTRIFUGAL ARM | 1 | $2.89 | |
| 26 | 0691-842 | SLIDER, GOVERNOR | 1 | $10.97 | |
| 27 | 0691-843 | WASHER | 1 | $4.95 | |
| 28 | 0691-446 | GEAR, GOVERNOR DRIVEN | 1 | $24.95 | |
| 29 | 3007-502 | WASHER,OIL SEPARATOR PLATE | 1 | $2.75 | |
| 30 | 0691-844 | SHAFT, GOVERNOR | 1 | $18.95 | |
| 31 | 0693-258 | SHAFT SET, THROTTLE | 1 | $49.95 | |
| 32 | 0693-252 | WASHER | 1 | $2.95 | |
| 33 | 0691-848 | SNAP PIN,M8 | 1 | $3.95 | |
| 34 | 3004-563 | SCREW,M3X10 | 1 | $2.29 | |
| 35 | 0693-698 | GEAR SET,GOVERNOR DRIVEN | 1 | $66.95 | |
| 36 | 0691-500 | PLATE, SPLASHER | 1 | $7.95 |
