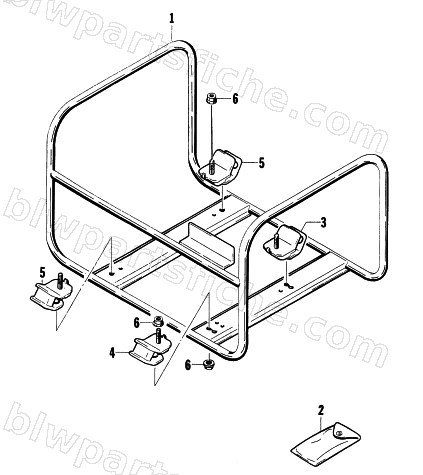

1997 Arctic Cat 2500G — FRAME ASSEMBLY
1997 2500G
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-328 | FRAME | 1 | $585.95 | |
| 2 | 0691-719 | TOOL SET | 1 | $22.01 | |
| 3 | 0693-280 | MOUNT, ENGINE | 1 | $61.95 | |
| 5 | 0693-229 | MOUNT ASSY, ENGINE | 1 | $51.95 | |
| 6 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 |
