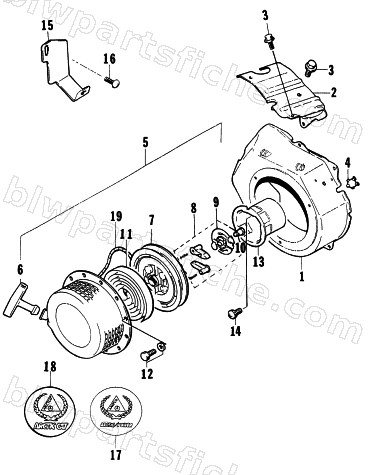

1997 Arctic Cat 1400G — RECOIL STARTER ASSEMBLY
1997 1400G
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-322 | COVER, COOLING FAN | 1 | $97.95 | |
| 2 | 0691-853 | COWLING, VENTILATION | 1 | $20.63 | |
| 3 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 4 | 0691-122 | PROTECTOR, LEAD WIRE | 1 | $5.95 | |
| 5 | 0693-232 | STARTER ASSY, RECOIL | 1 | $162.95 | |
| 6 | 0693-257 | GRIP ASSY. | 1 | $27.95 | |
| 7 | 0691-294 | REEL, STARTER | 1 | $44.95 | |
| 8 | 0693-256 | RATCHET SET | 1 | $24.77 | |
| 9 | 0691-859 | GUIDE, RATCHET | 1 | $7.95 | |
| 11 | 3005-162 | SPRING, STARTER ROLL | 1 | $34.95 | |
| 12 | 0693-246 | BOLT,6MM | 1 | $4.68 | |
| 13 | 0691-863 | PULLEY, STARTER | 1 | $42.95 | |
| 14 | 3007-689 | SCREW,M6X16 | 1 | $3.85 | |
| 15 | 0691-440 | GUARD, FAN COVER | 1 | $12.95 | |
| 17 | 0691-969 | EMBLEM | 1 | $18.95 | |
| 18 | 0693-039 | DECAL | 1 | $13.95 | |
| 19 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 |
