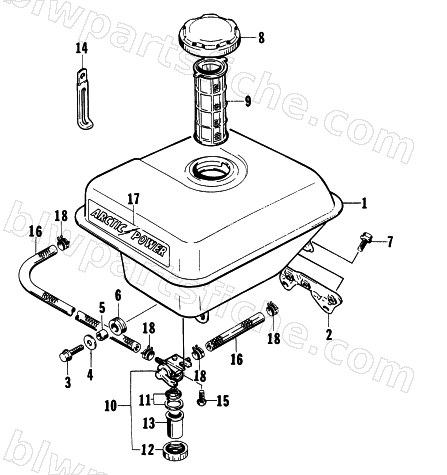

FUEL TANK ASSEMBLY
1997 1400G
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-329 | TANK, FUEL | 1 | $297.95 | |
| 2 | 0691-464 | BRACKET COMP, FUEL TANK | 1 | $20.63 | |
| 3 | 0693-330 | BOLT,6MM | 1 | $3.89 | |
| 4 | 3004-551 | WASHER,6.5X20X1.2 | 1 | $1.95 | |
| 5 | 0691-373 | SPACER, M6.1X9X7.5 | 1 | $2.19 | |
| 6 | 0691-223 | CUSHION | 1 | $4.95 | |
| 7 | 0693-318 | BOLT,M6X10 | 1 | $4.29 | |
| 8 | 0693-332 | CAP, FUEL TANK | 1 | $47.95 | |
| 9 | 0691-187 | FILTER ASSY, FUEL TANK | 1 | $29.95 | |
| 12 | 0693-547 | CAP SET, FUEL | 1 | $14.95 | |
| 14 | 3004-787 | CLAMP,M6 | 1 | $4.26 | |
| 15 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 16 | 3008-200 | HOSE, VACUUM,M5.3X10.5X600 | 1 | $26.95 | |
| 18 | 0691-036 | CLAMP,M9 | 1 | $3.69 |
