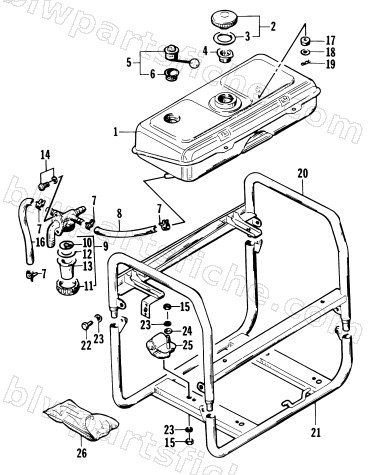

FUEL TANK & FRAME ASSEMBLY
1993 AC3000GD2
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-329 | TANK ASSY, FUEL | 1 | $224.95 | |
| 2 | 0691-330 | CAP, FUEL TANK | 1 | $22.95 | |
| 3 | 0691-337 | GASKET, FUEL TANK CAP | 1 | $8.95 | |
| 4 | 0691-336 | FILTER, FUEL | 1 | $20.95 | |
| 5 | 0691-338 | GAUGE ASSY, FUEL TANK | 1 | $22.95 | |
| 6 | 0691-339 | GASKET, FUEL LEVEL GAUGE | 1 | $5.95 | |
| 7 | 0691-036 | CLAMP,M9 | 1 | $3.69 | |
| 9 | 0691-331 | COCK ASSY, FUEL | 1 | $51.95 | |
| 10 | 0693-421 | FILTER | 1 | $8.95 | |
| 11 | 0691-186 | CUP, FUEL | 1 | $12.95 | |
| 12 | 0691-185 | GASKET, FUEL COCK | 1 | $6.95 | |
| 15 | 3007-416 | NUT | 1 | $2.75 | |
| 17 | 0691-223 | CUSHION | 1 | $4.95 | |
| 20 | 0691-327 | FRAME, UPPER | 1 | $229.95 | |
| 21 | 0691-328 | FRAME, LOWER | 1 | $147.95 | |
| 23 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 24 | 3423-204 | WASHER | 1 | $1.95 | |
| 25 | 0691-248 | MOUNT, ENGINE, GEN SIDE | 1 | $29.95 |
