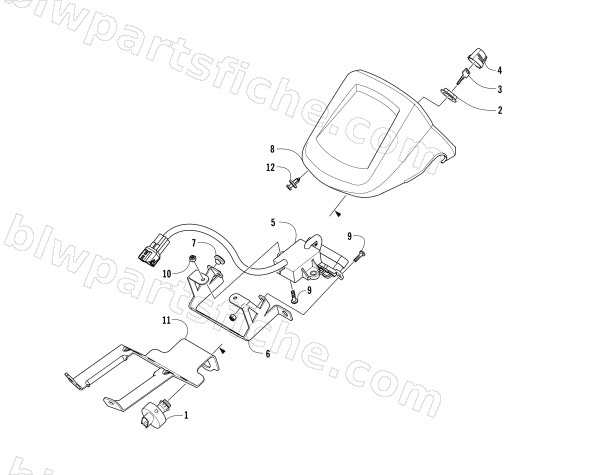

INSTRUMENT POD ASSEMBLY
2018 ALTERRA VLX 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0430-090 | SWITCH,IGNITION-LIGHTS (09 ATV) | 1 | $66.95 | |
| 2 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 3 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 3 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 4 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 5 | 0420-143 | DISPLAY,INDICATOR-5P CAN (VLX) | 1 | $90.95 | |
| 6 | 0405-592 | BRKT,MOUNTING-INDICATOR | 1 | $19.25 | |
| 7 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 8 | 0405-598 | POD,INSTRUMENT-BLACK | 1 | $100.95 | |
| 9 | 8471-416 | SCREW,MACH-TSPNH M4X.7X16 CL8.8 Z&B | 1 | $3.30 | |
| 10 | 8431-401 | NUT,HEX REG NYLOCK M4-.7 CLR | 1 | $0.26 | |
| 11 | 2506-470 | BRKT,MTG GAUGE-PTD | 1 | $26.95 | |
| 12 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 |
