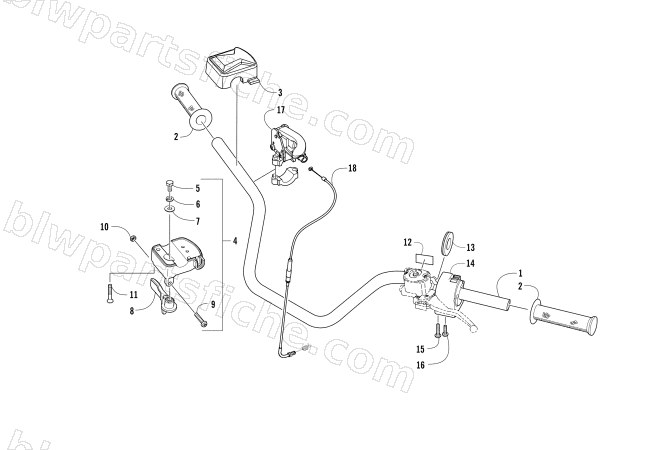

2018 Arctic Cat ALTERRA VLX 700 — HANDLEBAR ASSEMBLY
2018 ALTERRA VLX 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1505-017 | HANDLEBAR-PTD BLK | 1 | $30.95 | |
| 2 | 0405-106 | GRIP,HANDLEBAR | 1 | $20.63 | |
| 3 | 2502-564 | HOUSING,THROTTLE-PTD BLACK | 1 | $34.95 | |
| 4 | 0409-132 | CONTROL,THROTTLE W/ LEVER (010 FIS) | 1 | $45.95 | |
| 5 | 3007-392 | BOLT | 1 | $3.95 | |
| 6 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 7 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 8 | 0409-133 | LEVER,THROTTLE (010 FIS) | 1 | $52.95 | |
| 9 | 3423-014 | SCREW,5MM | 1 | $2.06 | |
| 10 | 3423-327 | NUT,5MM | 1 | $2.33 | |
| 11 | 1423-540 | SCREW,MACH-TORX M5X0.8X30 | 1 | $0.81 | |
| 12 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 | |
| 13 | 3409-019 | COVER, DUST | 1 | $2.61 | |
| 14 | 0509-014 | HANDLE CONTROL,LEFT-ASSY (W/ OVERIDE) | 1 | $144.95 | |
| 15 | 0409-028 | SCREW, SWITCH CONTROL - 5X45-6ZK | 1 | $4.95 | |
| 16 | 0409-027 | SCREW, SWITCH CONTROL - 5X35-6ZK | 1 | $4.95 | |
| 17 | 2402-443 | R/B 2402-553 | 1 | $58.95 | |
| 18 | 0487-110 | CABLE,2X4 LOCK | 1 | $30.95 |
