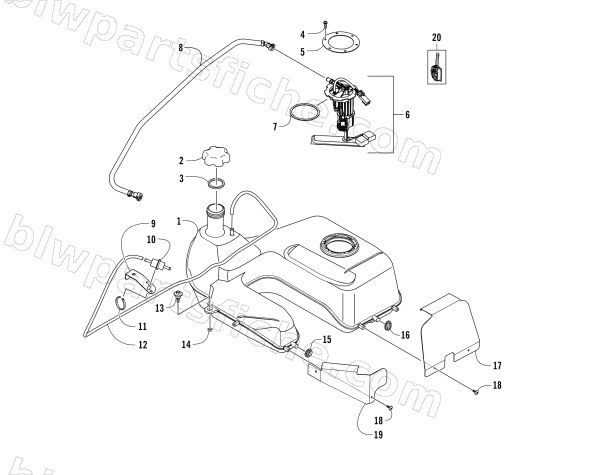

2018 Arctic Cat ALTERRA VLX 700 EPS — GAS TANK ASSEMBLY
2018 ALTERRA VLX 700 EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-307 | TANK,FUEL-ASSEMBLY (SERVICE PARTS) | 1 | $509.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 4 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 5 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 6 | 0570-397 | R/B 0570-432 | 1 | $485.95 | |
| 7 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 8 | 0570-317 | HOSE,FUEL-ASSEMBLY | 1 | $85.95 | |
| 9 | 1470-213 | MOUNT,VENT FILTER | 1 | $9.59 | |
| 10 | 1470-214 | FILTER,TANK VENT | 1 | $13.73 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 13 | 0423-732 | SCREW,FUEL TANK | 1 | $2.61 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 15 | 0423-460 | GROMMET, FUEL TANK | 1 | $4.26 | |
| 16 | 0423-806 | GROMMET, FUEL TANK | 1 | $16.49 | |
| 17 | 0470-710 | SHIELD,FUEL TANK-REAR | 1 | $23.39 | |
| 18 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 19 | 0470-709 | SHIELD,FUEL TANK-FRONT | 1 | $20.63 |
