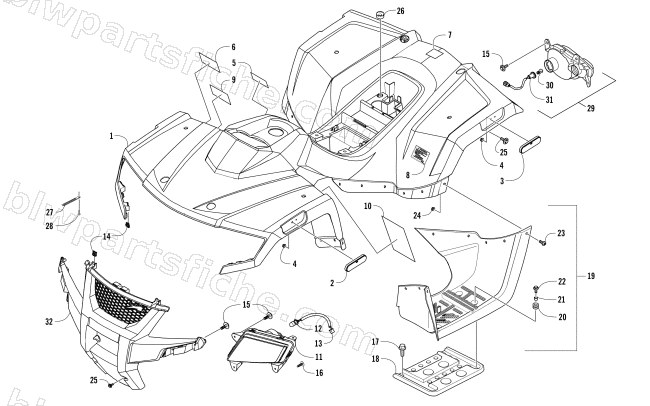

2018 Arctic Cat ALTERRA 90 — BODY PANEL AND HEADLIGHT ASSEMBLY
2018 ALTERRA 90
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3307-886 | BODY MAIN-WHITE-W/DECALS (ALT 90) | 1 | $408.95 | |
| 2 | 3313-359 | REFLECTOR,FRONT (OVAL) | 1 | $13.73 | |
| 3 | 3313-360 | REFLECTOR,REAR (OVAL) | 1 | $13.73 | |
| 4 | 3304-774 | NUT FLANGE 5MM(G) | 1 | $0.81 | |
| 5 | 0411-836 | DECAL,WARNING HILL (MINI) | 1 | $82.95 | |
| 6 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 7 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 9 | 2411-137 | DECAL,WARNING-AGE(12) | 1 | $22.01 | |
| 10 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 12 | 3305-827 | BULB,HEADLIGHT | 1 | $30.95 | |
| 14 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 15 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 16 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 17 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 18 | 3304-494 | FOOTREST-RH | 1 | $37.95 | |
| 18 | 3304-495 | FOOTREST-LH | 1 | $37.95 | |
| 19 | 3306-144 | MUDGUARD ASSY R FLOOR | 1 | $82.95 | |
| 19 | 3306-145 | MUDGUARD ASSY L FLOOR | 1 | $82.95 | |
| 20 | 3303-227 | RUBBER WIND SCREEN | 1 | $1.92 | |
| 21 | 3303-233 | COLLAR FLOOR | 1 | $2.33 | |
| 22 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 23 | 3305-703 | SCREW SPECIAL 6*20 | 1 | $1.78 | |
| 24 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 25 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 26 | 3303-232 | RUBBER REAR FENDER | 1 | $1.92 | |
| 27 | 3304-156 | CLIP 2*70 | 1 | $1.92 | |
| 28 | 3304-651 | SCREW TAPPING 4*12 | 1 | $1.09 | |
| 30 | 3303-849 | BULB TAIL & STOP 12V21W/5W | 1 | $12.35 |
