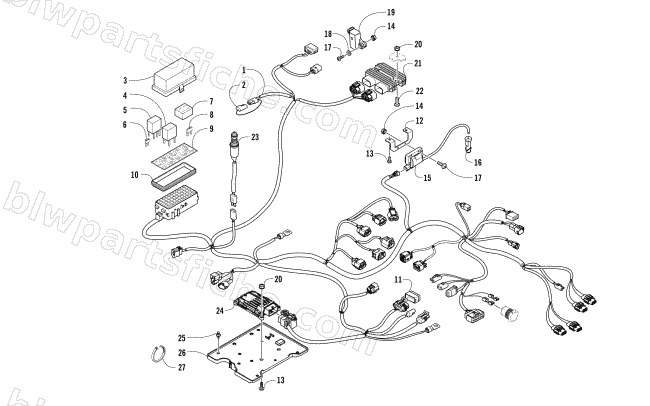

2018 Arctic Cat ALTERRA 700 MUD PRO LTD EPS — WIRING HARNESS ASSEMBLY
2018 ALTERRA 700 MUD PRO LTD EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-486 | HARNESS/DIA,MAIN (014 MUD PRO 700 EPS) | 1 | $668.95 | |
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 4 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 5 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 6 | 0430-100 | CIRCUIT BREAKER,MINI-15A (FAN) | 1 | $12.35 | |
| 7 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 8 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 8 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 8 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 9 | 3411-968 | DECAL,PDM (2014 ATV SYN) | 1 | $14.95 | |
| 10 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 11 | 0430-103 | COVER,ASS'Y-DIAGNOSTIC CONN'R (10P) | 1 | $15.11 | |
| 12 | 4406-029 | BRACKET,COIL MTG | 1 | $8.21 | |
| 13 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 14 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 15 | 0824-071 | COIL/CAP,IGN-ASSY (012 H1/H2) | 1 | $260.95 | |
| 16 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 17 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 | |
| 18 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 19 | 0409-064 | SENSOR,INCLINATION (AD) | 1 | $90.95 | |
| 20 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 21 | 0824-078 | REGULATOR,VOLTAGE (35-AMP) | 1 | $212.95 | |
| 22 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 23 | 0409-089 | SWITCH,BRAKE-FOOT | 1 | $58.95 | |
| 25 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 26 | 2416-181 | PANEL,ELECTRICAL-EFI-SYNERJECT | 1 | $33.95 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 27 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
