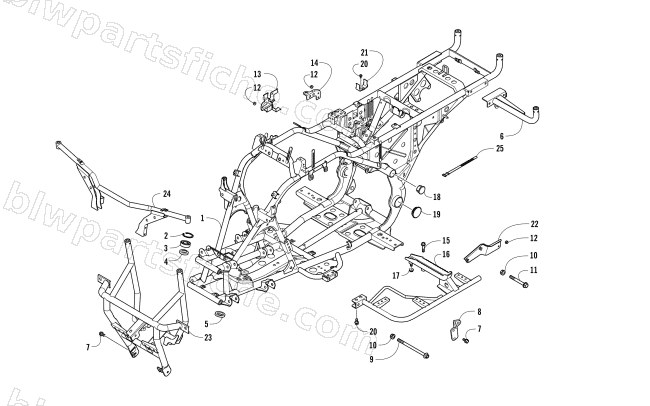

2018 Arctic Cat ALTERRA 300 — FRAME AND RELATED PARTS
2018 ALTERRA 300
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3307-831 | BODY COMP FRAME | 1 | $1,485.95 | |
| 2 | 3304-150 | CIR CLIP IN 40 | 1 | $2.33 | |
| 3 | 3304-203 | BEARING BALL RADIAL 6203/17*40*12 | 1 | $23.39 | |
| 4 | 3303-298 | OIL SEAL 22*35*7 | 1 | $3.02 | |
| 5 | 3304-064 | DUST SEAL 27*40*6 | 1 | $3.16 | |
| 6 | 3307-832 | BRKT R RR CARRIER | 1 | $43.95 | |
| 6 | 3307-833 | BRKT L RR CARRIER | 1 | $43.95 | |
| 7 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 8 | 3303-938 | BRACKET ENG HANGER | 1 | $10.97 | |
| 9 | 3304-184 | BOLT FLANGE 10*160 | 1 | $5.51 | |
| 10 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 11 | 3304-183 | SCREW,CAP-HFH M10X1.25X85 | 1 | $2.59 | |
| 12 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 13 | 3304-657 | STAY WINKER RELAY | 1 | $20.63 | |
| 14 | 3304-655 | STAY STOP SW | 1 | $10.97 | |
| 15 | 3303-616 | BOLT FLANGE 8*35 | 1 | $1.78 | |
| 16 | 3307-834 | STAY R FLOOR PANEL | 1 | $90.95 | |
| 16 | 3307-835 | STAY L FLOOR PANEL | 1 | $90.95 | |
| 17 | 3303-332 | NUT FLANGE 8MM | 1 | $0.81 | |
| 18 | 3304-658 | CAP PIPE | 1 | $1.64 | |
| 19 | 3303-999 | CAP PIPE | 1 | $3.16 | |
| 20 | 3304-409 | BOLT WASHER 5*12 | 1 | $0.81 | |
| 21 | 3305-238 | BRKT START MAG SW | 1 | $5.37 | |
| 22 | 3303-935 | STAY CATCH TANK | 1 | $16.49 | |
| 23 | 3307-837 | PIPE COMP FRONT BUMPER | 1 | $203.95 | |
| 24 | 3307-836 | TUBE,REAR MOUNT-FRONT RACK | 1 | $153.95 | |
| 25 | 3303-289 | BAND OIL HANDLE | 1 | $1.95 |
