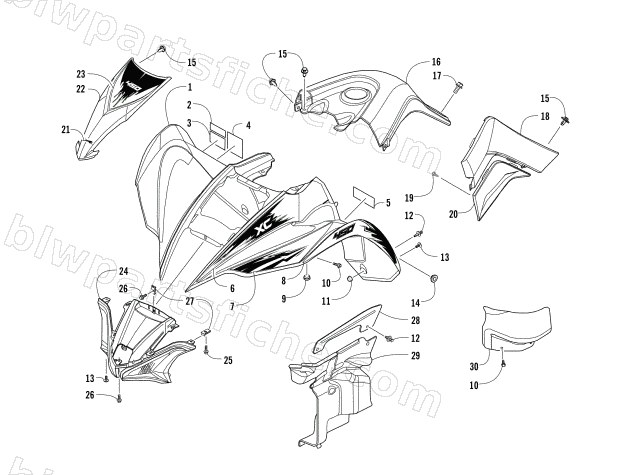

2017 Arctic Cat XC 450 EFI — FRONT BODY ASSEMBLY
2017 XC 450 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3307-781 | FENDER,FRONT-W/DECALS-TEAM ARCTIC GRN | 1 | $799.95 | |
| 2 | 1411-577 | DECAL,WARNING-OFF ROAD ONLY | 1 | $50.95 | |
| 3 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 4 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 5 | 0411-835 | DECAL,WARNING HILL | 1 | $4.95 | |
| 6 | 5411-934 | DECAL,SIDE-XC-RH | 1 | $68.95 | |
| 6 | 5411-935 | DECAL,SIDE-XC-LH | 1 | $68.95 | |
| 7 | 5411-936 | DECAL,FENDER FRONT-RH | 1 | $58.95 | |
| 7 | 5411-937 | DECAL,FENDER FRONT-LH | 1 | $58.95 | |
| 8 | 5411-938 | DECAL,SIDE-450-RH | 1 | $23.39 | |
| 8 | 5411-939 | DECAL,SIDE-450-LH | 1 | $23.39 | |
| 9 | 3306-458 | BUMPER,SEAT | 1 | $2.61 | |
| 10 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 11 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 12 | 3305-448 | CLIP,MUDGUARD | 1 | $2.33 | |
| 13 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 14 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 15 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 | |
| 16 | 3307-779 | COVER,TANK (TAG) | 1 | $135.95 | |
| 17 | 3304-652 | BOLT WASHER 6*12 | 1 | $1.09 | |
| 18 | 3306-570 | COVER A R SIDE (BLACK) | 1 | $50.95 | |
| 18 | 3306-571 | COVER A L SIDE (BLACK) | 1 | $50.95 | |
| 19 | 3304-651 | SCREW TAPPING 4*12 | 1 | $1.09 | |
| 20 | 3306-744 | COVER B.R SIDE (BLK DIAMOND) | 1 | $94.95 | |
| 20 | 3306-745 | COVER B.L SIDE (BLK DIAMOND) | 1 | $94.95 | |
| 21 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 22 | 3307-782 | COVER,FRONT (TAG) | 1 | $106.95 | |
| 23 | 5411-883 | DECAL,FRONT-CENTER | 1 | $38.95 | |
| 24 | 3306-539 | GRILLE,FRONT | 1 | $20.63 | |
| 25 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 26 | 3303-313 | BOLT WASH 6*16 | 1 | $1.09 | |
| 27 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 28 | 3306-542 | PANEL B,SPLASH RH/LH | 1 | $6.95 | |
| 29 | 3306-284 | PANEL,SPLASH RIGHT | 1 | $20.63 | |
| 29 | 3306-285 | PANEL SPLASH LEFT | 1 | $20.63 | |
| 30 | 3313-844 | PROTECTOR HOSE | 1 | $16.49 |
