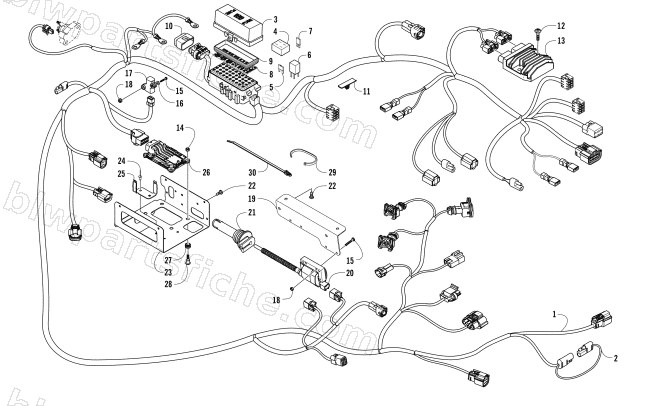

WIRING HARNESS ASSEMBLY
2017 WILDCAT TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 4 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 5 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 5 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 5 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 6 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 9 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 10 | 0430-103 | COVER,ASS'Y-DIAGNOSTIC CONN'R (10P) | 1 | $15.11 | |
| 11 | 0430-102 | RETAINER,CLIP-HARNESS (5 FIN) | 1 | $1.50 | |
| 12 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 13 | 0824-072 | REGULATOR,VOLTAGE (50-AMP) | 1 | $208.95 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 15 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 | |
| 16 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 17 | 0409-064 | SENSOR,INCLINATION (AD) | 1 | $90.95 | |
| 18 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 19 | 4406-315 | BRACKET,COIL (014 WC50) | 1 | $9.59 | |
| 20 | 0824-079 | COIL/CAP,IGNITION-ASSY | 1 | $80.95 | |
| 21 | 0824-075 | CAP/WIRE,SPARK PLUG-P145 | 1 | $27.95 | |
| 22 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 23 | 5506-240 | TRAY,ELECTRICAL-PTD BLACK(014 WC50) | 1 | $33.95 | |
| 24 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 25 | 0745-388 | BRACKET, PDM - PTD | 1 | $20.63 | |
| 27 | 0423-086 | GROMMET (EPDM 50) | 1 | $2.61 | |
| 28 | 1423-217 | BOLT,SHOULDER-9.6X9.55XM6 BLK (30MM) | 1 | $2.75 | |
| 29 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 30 | 0423-075 | TIE,CABLE-PUSH MOUNT | 1 | $0.95 |
