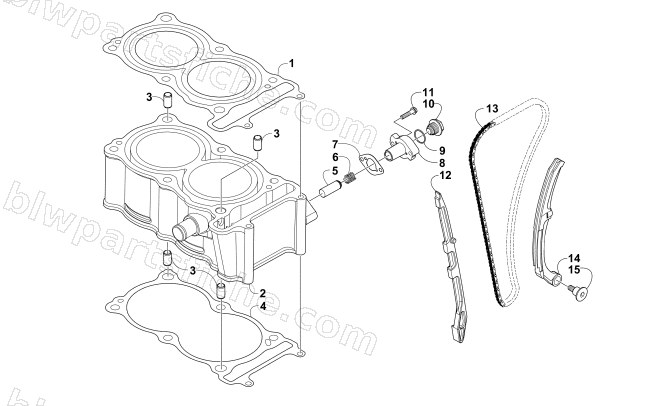

2017 Arctic Cat WILDCAT TRAIL XT EPS — CYLINDER AND TIMING CHAIN ASSEMBLY
2017 WILDCAT TRAIL XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-929 | SEAL HEAD COVER | 1 | $86.95 | |
| 2 | 3306-990 | CYLINDER COMP | 1 | $477.95 | |
| 3 | 0829-046 | PIN,DOWEL | 1 | $3.44 | |
| 4 | 3306-991 | GASKET CYLINDER | 1 | $47.95 | |
| 5 | 3307-004 | CHAIN TENSIONER | 1 | $169.95 | |
| 6 | 3307-001 | SPRING OIL TENSIONER | 1 | $1.64 | |
| 7 | 3306-999 | GASKET TENSIONER LIFTER | 1 | $30.95 | |
| 8 | 3307-002 | CASE ASM LIFTER TENSIONER | 1 | $30.95 | |
| 9 | 3307-007 | WASHER 28*18.2*1 | 1 | $5.09 | |
| 10 | 3307-006 | BOLT SPECIAL M18*1.0 | 1 | $5.09 | |
| 11 | 3303-385 | BOLT FLANGE SH 6*28 | 1 | $0.81 | |
| 12 | 3307-005 | GUIDE COMP CAM CHAIN | 1 | $30.95 | |
| 13 | 3306-997 | CHAIN CAM | 1 | $79.95 | |
| 14 | 3306-998 | TENSIONER, CAM CHAIN | 1 | $79.95 | |
| 15 | 3307-003 | PIVOT TENSION GUIDE 8*30 | 1 | $5.51 |
