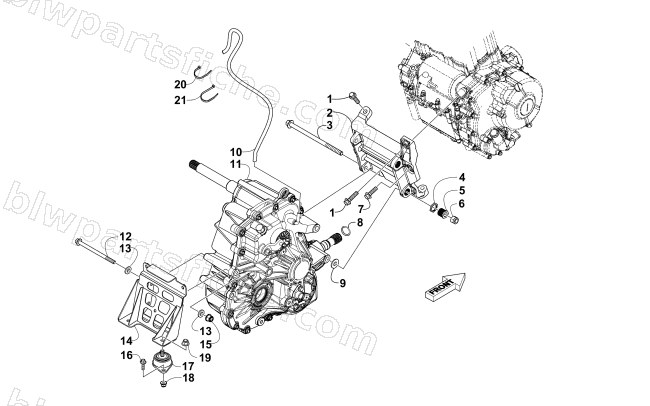

2017 Arctic Cat WILDCAT TRAIL XT EPS LIMITED EDITION — REAR DRIVE SYSTEM
2017 WILDCAT TRAIL XT EPS LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8409-041 | SCREW,CAP-HFH M10X1.25X40 CL10.9 W/2353 | 1 | $2.06 | |
| 2 | 0408-040 | BRACKET,ENGINE/TRANSAXLE MOUNTING-MACH | 1 | $239.95 | |
| 3 | 1423-243 | SCREW,CAP-HFH M12X1.25X210 CL10.9 SILV | 1 | $13.73 | |
| 4 | 1423-245 | NUT,JAM - M22X1.5-6H | 1 | $5.65 | |
| 5 | 1423-244 | NUT,ADJUSTER - M22X1.5-6g | 1 | $13.73 | |
| 6 | 1623-965 | NUT,HEX-THK NYL M12X1.25 CL8 Z&Y(DIN) | 1 | $1.50 | |
| 7 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 8 | 1423-090 | O-RING (2-115) | 1 | $1.64 | |
| 9 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 10 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 12 | 1623-729 | SCREW,CAP-HFH M10-1.25X145 CL10.9 | 1 | $17.87 | |
| 13 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 14 | 0508-016 | BRKT,RR TRANSAXLE MTG-PTD BLK | 1 | $84.95 | |
| 16 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 17 | 0408-064 | MOUNT,ENGINE-WITH STUD | 1 | $41.95 | |
| 18 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 19 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 20 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 21 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
