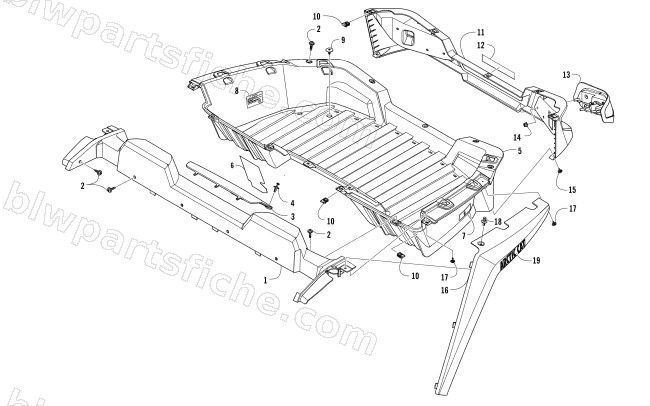

2017 Arctic Cat WILDCAT TRAIL XT EPS LIMITED EDITION — CARGO BOX AND TAILLIGHT ASSEMBLY
2017 WILDCAT TRAIL XT EPS LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-530 | HEADREST-TEAMARCTIC GREEN | 1 | $324.95 | |
| 2 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 3 | 2416-825 | PANEL,ACCESS-RADIATOR BLK | 1 | $15.11 | |
| 4 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 7 | 2411-974 | REFLECTOR,REAR (WC) | 1 | $10.97 | |
| 9 | 1423-109 | SCREW,SELF TAP-TSTRH MR6X1.0X16 | 1 | $2.75 | |
| 10 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 11 | 4406-264 | FASCIA,REAR | 1 | $54.95 | |
| 12 | 2411-944 | DECAL,REAR-FLAG | 1 | $26.95 | |
| 13 | 0509-074 | TAILLIGHT,LED-RH-ASSY (WC50) | 1 | $93.95 | |
| 13 | 0509-075 | TAILLIGHT,LED-LH-ASSY (WC50) | 1 | $93.95 | |
| 15 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 16 | 5506-562 | FENDER,REAR-RH-TEAM ARCTIC GREEN | 1 | $148.95 | |
| 16 | 5506-563 | FENDER,REAR-LH-TEAM ARCTIC GREEN | 1 | $148.95 | |
| 17 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 18 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 |
