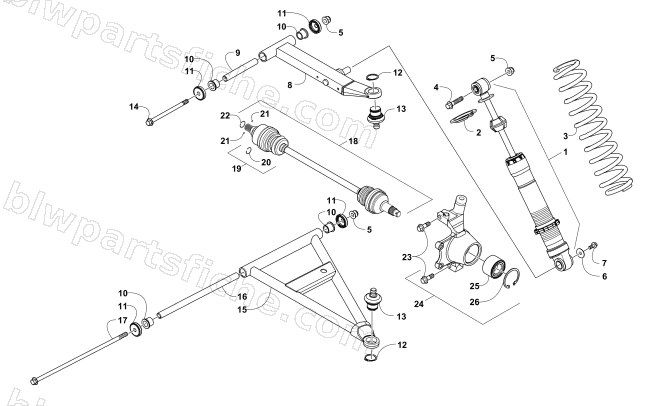

FRONT SUSPENSION ASSEMBLY
2017 WILDCAT TRAIL LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0403-292 | SHOCK,FRONT ARM-17.59" | 1 | $494.95 | |
| 2 | 0403-490 | RETAINER,SPRING-2.55 OD X .34 TLG | 1 | $37.95 | |
| 4 | 8409-055 | SCREW,CAP-HFH M10X1.25X55 CL10.9 Z&Y | 1 | $4.13 | |
| 6 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 7 | 8408-821 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353 | 1 | $1.09 | |
| 9 | 0403-305 | SLEEVE,FR-UPR-SUSPENSION | 1 | $10.97 | |
| 10 | 0403-264 | BUSHING,SUSPENSION | 1 | $13.73 | |
| 11 | 1423-204 | SEAL,SUSPENSION | 1 | $4.95 | |
| 12 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 13 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 14 | 1423-266 | SCREW,CAP-HFH M10-1.25X155 | 1 | $6.47 | |
| 16 | 0403-402 | SLEEVE,FRT-LWR SUSPENSION | 1 | $17.87 | |
| 17 | 1423-249 | SCREW,CAP-HFH M10X1.25X330 CL 10.9 | 1 | $27.95 | |
| 19 | 2436-112 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 21 | 1402-885 | PIN,TRANSFER,SHORT-COUPLER AXLE | 1 | $1.92 | |
| 22 | 1402-889 | CIRCLIP,22MM | 1 | $1.78 | |
| 23 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 | |
| 24 | 0503-626 | KNUCKLE,FR-RH-ASSY | 1 | $307.95 | |
| 24 | 0503-627 | KNUCKLE,FR-LH-ASSY | 1 | $307.95 | |
| 25 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 26 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 |
