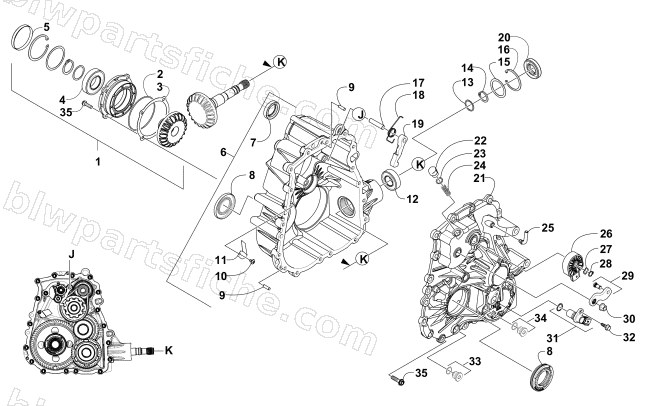

TRANSAXLE CASE/COVER

2017 WILDCAT TRAIL LIME

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	0817-068	SUBASSEMBLY, PINION	1	$679.95
2	0817-081	O-RING, 2-156	1	$2.47
3	0817-025	SHIM SET135.00 OD X 116.0 ID	1	$118.95
4	0817-078	BEARING, BALL, 6208 C3	1	$34.95
5	0817-080	PLUG, PINION COVER	1	$10.97
6	0817-069	SUBASSEMBLY, CASE	1	$793.95
7	0817-079	SEAL,TRIPLE LIP-1.180X1.850X0.315 VITON	1	$20.63
8	0817-076	SEAL,TRIPLE LIP-VITON 40X70X7	1	$23.39
9	0817-077	PIN, DOWEL, 6 X 20	1	$1.92
10	0817-004	SCREW, TAPPING TTH HD #10-24 X .375	1	$1.64
11	0817-070	DEFLECTOR, OIL,	1	$2.88
12	0817-028	BEARING, BALL, 6205 C3 25X52X15	1	$12.35
13	0817-024	SHIM,SET 2.040 OD X 1.63 ID	1	$30.95
14	0817-015	RING, RETAINING BASIC, INTERNAL 2.047	1	$5.92
15	0817-023	SHIM,SET 1.180 OD X .995 ID	1	$60.95
16	0817-012	RING, RETAINING BASIC, EXTERNAL .984	1	$2.61
17	0817-011	PIN, DOWEL, 10X45	1	$4.26
20	0817-072	SEAL, TRIPLE LIP, 0.984X2.047X0.394	1	$10.97
21	0817-040	COVER, MACH	1	$230.95
22	0817-065	PLUG, DETENT	1	$12.35
23	0817-075	O-RING, .530 I.D X .082 WIDE	1	$1.50
24	0817-036	SPRING, COMPRESSION, .450 OD X 1.58	1	$2.47
25	0817-051	TUBE, VENT, 90 -1/4" HOSE	1	$4.40
27	0817-037	SPRING, WAVE, 16 X 11.28 X 0.25	1	$10.97
28	0817-019	RING, RETAINING, EXTERNAL DSH-12	1	$4.95
29	0817-067	SUBASSEMBLY, BELLCRANK	1	$41.95
30	0817-007	NUT, LOCK HEX FLANGE, NYLON M8 X 1.25	1	$1.92
31	0430-121	SENSOR,SPEED-LOR MX	1	$43.95
32	0817-006	SCREW, HEX FLANGE HEAD, M6 X 1 X 20	1	$1.92
33	0817-003	PLUG, M18 X 1.5, MAGNETIC	1	$12.35
34	0817-002	PLUG, M18 X 1.5	1	$6.83
35	0817-005	SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30	1	$1.64
