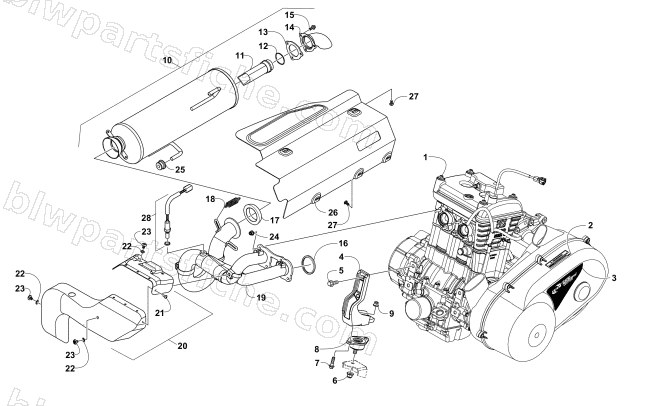

ENGINE AND EXHAUST
2017 WILDCAT TRAIL LIME
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-810 | ENGINE,700 ZK | 1 | $4,513.95 | |
| 2 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 3 | 2411-287 | DECAL,RAPID RESPONSE-BLK | 1 | $10.97 | |
| 4 | 0508-026 | ENGINE MNT,FRT-MACH-RH | 1 | $84.95 | |
| 4 | 0508-027 | ENGINE MNT,FRT-MACH-LH | 1 | $84.95 | |
| 5 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 | |
| 6 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 7 | 8408-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 Z&Y | 1 | $2.06 | |
| 8 | 0408-064 | MOUNT,ENGINE-WITH STUD | 1 | $41.95 | |
| 9 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 10 | 0512-679 | MUFFLER-ASSEMBLY-PTD HI TEMP BLK | 1 | $1,018.95 | |
| 11 | 0512-647 | SPARK ARRESTER | 1 | $37.95 | |
| 12 | 1423-246 | WASHER,WAVE | 1 | $10.97 | |
| 13 | 0412-675 | GASKET,SPARK ARRESTER | 1 | $20.63 | |
| 14 | 0512-760 | TAIL PIPE ASSEMBLY-PAINTED | 1 | $47.95 | |
| 15 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 16 | 0412-647 | SEAL, EXHAUST - CRUSH | 1 | $2.75 | |
| 17 | 1612-323 | GASKET, EXH,TAIL PIPE | 1 | $29.95 | |
| 18 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 20 | 0512-794 | R/B 1412-134 | 1 | $62.95 | |
| 21 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 22 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 23 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 24 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 26 | 0412-774 | SHIELD,HEAT | 1 | $45.95 | |
| 27 | 1623-490 | SCREW,CAP-TSPNH M6X1.0X12 BLK-TRILOBE | 1 | $1.37 |
