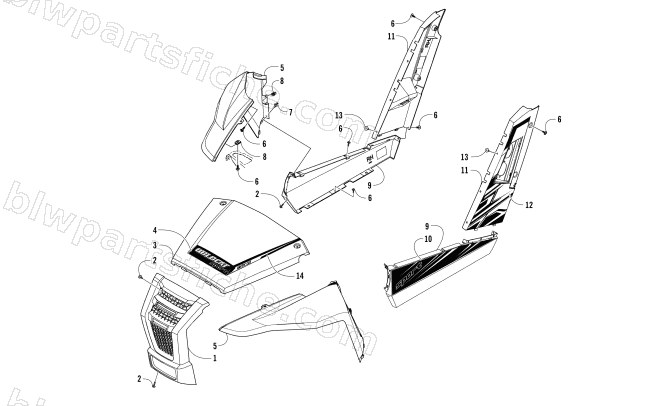

2017 Arctic Cat WILDCAT SPORT XT EPS — FRONT AND SIDE PANEL ASSEMBLIES
2017 WILDCAT SPORT XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4406-263 | FASCIA,FRONT | 1 | $33.95 | |
| 2 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 3 | 4406-269 | PANEL,HOOD-BLACK | 1 | $82.95 | |
| 6 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 7 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 8 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 9 | 4406-280 | PANEL,LOWER SIDE-RH BLACK | 1 | $42.95 | |
| 9 | 4406-281 | PANEL,LOWER SIDE-LH BLACK | 1 | $42.95 | |
| 13 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 |
