2017 Arctic Cat WILDCAT SPORT XT EPS — CONSOLE AND FLOOR PANEL ASSEMBLY

2017 WILDCAT SPORT XT EPS

Scroll / pinch to zoom · drag or arrow keys to pan · double-click resets

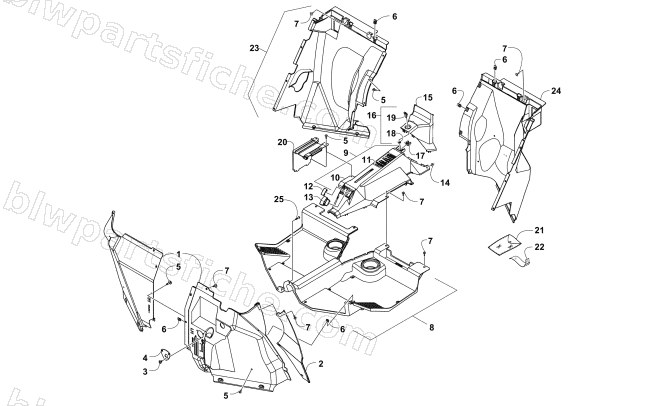

CONSOLE AND FLOOR PANEL ASSEMBLY diagram

Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.

Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

# Part No. Description Qty Price
1 4406-270 PANEL,FRONT SPLASH-RH 1 $82.95
1 4406-271 PANEL,FRONT SPLASH-LH 1 $82.95
2 4406-530 SHIELD,FRONT FENDER-RH 1 $13.73
2 4406-531 SHIELD,FRONT FENDER-LH 1 $13.73
3 0623-544 PLUG, CHRISTMAS TREE 1 $0.54
4 4406-346 SHIELD,SPLASH-STEERING SHAFT 1 $2.47
5 0423-609 SCREW,MACH-TSPNWH M6X1.0X23.5 BLK 1 $0.95
6 0423-577 CLIP,U-NUT M6 1 $0.40
7 1423-198 SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK 1 $0.95
8 7506-070 FLOOR-ASSEMBLY 1 $262.95
9 0417-024 SEAL,FOAM (1/2"W X 1/4"T) 1 $0.95
10 5506-603 CENTER CONSOLE W/ WARNING DECALS 1 $91.95
11 3411-780 DECAL,WARNING-REVERSE 1 $10.97
12 0409-070 PLUG,SWITCH HOLE 1 $3.57
13 0409-071 SWITCH,REVERSE OVERRIDE 1 $47.95
14 0623-362 RIVET,PLASTIC-REINSTALLABLE 1 $0.68
15 4406-268 PANEL,OIL ACCESS 1 $20.63
16 1423-218 FASTENER,QUARTER TURN - ASSEMBLY 1 $4.54
17 1423-208 RECEIVER,QUARTER TURN FASTENER 1 $1.95
18 1423-209 RETAINER,QUARTER TURN FASTENER 1 $0.95
19 1423-207 KNOB,QUARTER TURN FASTENER 1 $2.75
20 0445-104 COVER,BATTERY 1 $13.73
21 0544-025 KIT,TOOL-P145 1 $65.95
22 0444-291 RETAINER,VELCRO (2" X 9") 1 $10.97
24 4406-273 R/B 6406-927 1 $109.95
25 1423-281 SCREW,BODY M6X1.0X25 W LEAD-IN BLACK 1 $1.37
