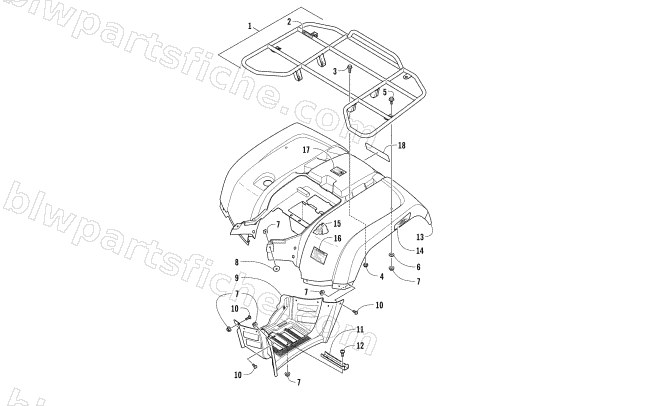

2017 Arctic Cat VLX 700 — REAR RACK, BODY PANEL, AND FOOTWELL ASSEMBLIES
2017 VLX 700
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8506-335 | RACK,REAR-ASSEMBLY | 1 | $193.95 | |
| 2 | 0411-648 | DECAL,WARNING-REAR RACK (200 LB.) | 1 | $3.30 | |
| 3 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 4 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 5 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 6 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 8 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 9 | 1406-356 | FOOTWELL,AUTO-RH | 1 | $105.95 | |
| 9 | 2406-429 | R/B 6406-763 | 1 | $99.95 | |
| 10 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 11 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 12 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 13 | 8506-639 | R/B 8506-897 | 1 | $891.95 | |
| 13 | 2516-074 | R/B 8506-896 | 1 | $324.95 | |
| 14 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 14 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 15 | 0470-658 | SHIELD,HEAT-BATTERY BOX | 1 | $2.61 | |
| 16 | 4411-836 | DECAL,WARNING-TIRE PRESSURE | 1 | $6.47 | |
| 17 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 |
