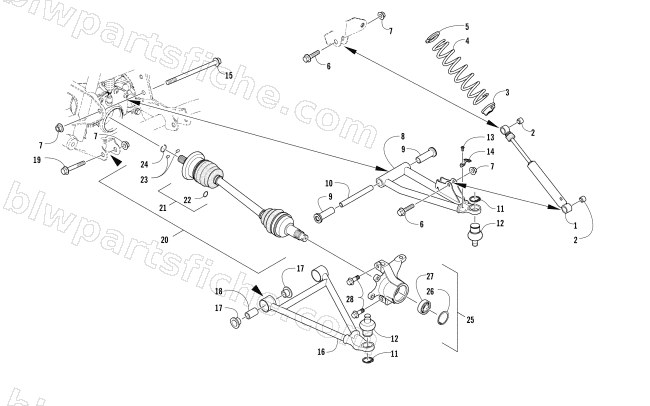

FRONT SUSPENSION ASSEMBLY
2017 VLX 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0403-209 | SHOCK ABSORBER-FRONT | 1 | $126.95 | |
| 2 | 0403-182 | BUSHING-DOUBLE BONDED | 1 | $15.11 | |
| 3 | 0403-395 | CAM,ADJUSTER-SPRING | 1 | $20.63 | |
| 4 | 0503-353 | SPRING,COIL-FRONT-BLACK | 1 | $74.95 | |
| 5 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 6 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 8 | 0503-416 | A-ARM,FRONT UPPER RH-BLACK-ASSY | 1 | $260.95 | |
| 8 | 0503-417 | A-ARM,FRONT UPPER LH-BLACK-ASSY | 1 | $260.95 | |
| 9 | 0403-289 | BUSHING,UPPER A-ARM SUSPENSION | 1 | $4.13 | |
| 10 | 0403-439 | COLLAR,SUSPENSION BUSHING-UPPER A-ARM | 1 | $17.87 | |
| 11 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 12 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 13 | 0423-946 | SCREW,SELF TAP-TSPNH-M5X0.8X12 BLK | 1 | $0.68 | |
| 14 | 1502-594 | CLIP,BRAKE HOSE | 1 | $1.92 | |
| 15 | 0423-334 | SCREW, CAP-HFH M10-1.25 X165 Z&Y CL10.9 | 1 | $5.65 | |
| 16 | 0503-252 | A ARM,FRONT,LOWER-RH-BLK-ASSY (VP) | 1 | $155.79 | |
| 16 | 0503-253 | A ARM,FRONT,LOWER-LH-BLK-ASSY (VP) | 1 | $260.95 | |
| 17 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 18 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 19 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 20 | 2502-525 | R/B 2502-562 | 1 | $289.95 | |
| 21 | 2436-111 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 23 | 1402-885 | PIN,TRANSFER,SHORT-COUPLER AXLE | 1 | $1.92 | |
| 24 | 1402-889 | CIRCLIP,22MM | 1 | $1.78 | |
| 25 | 0505-576 | R/B 0505-978 | 1 | $266.95 | |
| 25 | 0505-577 | KNUCKLE,STEERING-LH ASSY | 1 | $239.95 | |
| 26 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 27 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 28 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 |
