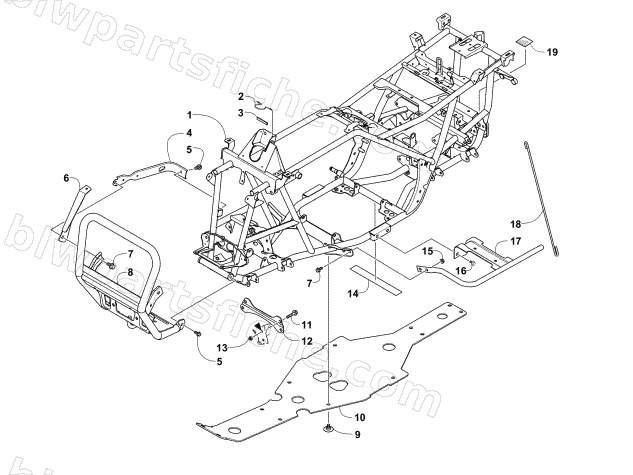

2017 Arctic Cat VLX 700 — FRAME AND RELATED PARTS
2017 VLX 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8506-529 | R/B 9506-115 | 1 | $1,314.95 | |
| 2 | 2416-401 | CLIP,WIRE HARNESS | 1 | $3.44 | |
| 3 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 4 | 1506-596 | CHANNEL,BUMPER MOUNTING-BLACK | 1 | $30.95 | |
| 5 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 6 | 1506-562 | BRACKET,BUMPER-RH-BLACK | 1 | $30.95 | |
| 6 | 1506-563 | BRACKET,BUMPER-LH-BLACK | 1 | $30.95 | |
| 7 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 8506-509 | BUMPER,FRONT-PTD BLACK (VLX) | 1 | $150.95 | |
| 9 | 1423-109 | SCREW,SELF TAP-TSTRH MR6X1.0X16 | 1 | $2.75 | |
| 10 | 1406-030 | PANEL,BELLY | 1 | $187.95 | |
| 11 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 12 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 14 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 15 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 16 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 17 | 1506-380 | FOOTREST,RH-PTD BLACK | 1 | $79.95 | |
| 17 | 1506-379 | FOOTREST,LH-PTD BLACK | 1 | $79.95 | |
| 18 | 2506-423 | ROD,SUPPORT-BLACK | 1 | $10.97 | |
| 19 | 4411-550 | DECAL,WARNING-TOWING-1050 LB | 1 | $4.95 |
