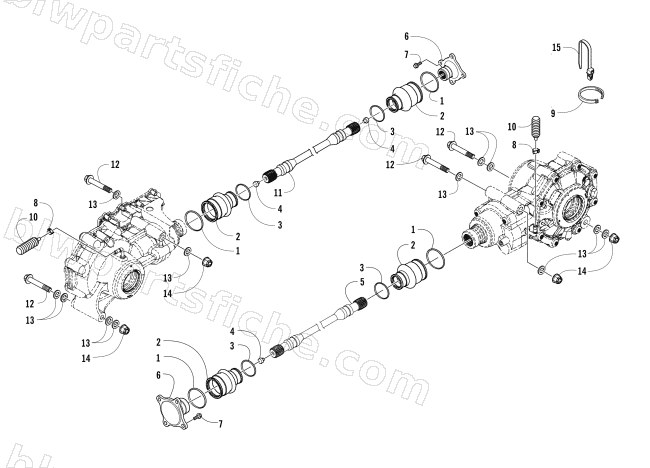

2017 Arctic Cat PROWLER 700 XT — DRIVE TRAIN ASSEMBLY
2017 PROWLER 700 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0830-240 | O-RING-#2-124 | 1 | $3.57 | |
| 4 | 0673-618 | BUMPER,DRIVESHAFT | 1 | $3.57 | |
| 6 | 2402-193 | FLANGE,OUTPUT | 1 | $82.95 | |
| 7 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 11 | 1402-271 | SHAFT,PROPELLER-FRONT | 1 | $196.95 | |
| 12 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 13 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 14 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 15 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
