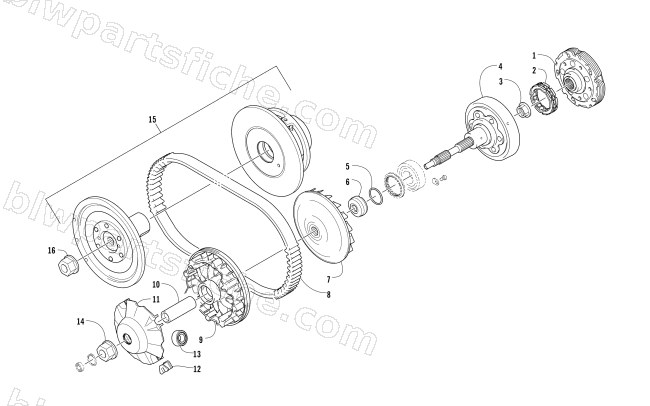

2017 Arctic Cat PROWLER 500 — TRANSMISSION ASSEMBLY
2017 PROWLER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0823-328 | R/B 0823-197 | 1 | $398.95 | |
| 2 | 0823-198 | CLUTCH,ONE WAY | 1 | $212.95 | |
| 3 | 0827-050 | NUT,HFH CCW (M16 X 1.5) | 1 | $12.35 | |
| 4 | 0823-338 | GEAR ASSY,PRIMARY DRIVE(HOUSING,CLUTCH) | 1 | $227.95 | |
| 5 | 0830-187 | O-RING 40 X 2.5 | 1 | $2.61 | |
| 6 | 0823-058 | SPACER, FIXED DRIVE FACE | 1 | $33.95 | |
| 7 | 0823-203 | FACE,FIXED DRIVE | 1 | $118.95 | |
| 8 | 0823-228 | V-BELT | 1 | $260.95 | |
| 11 | 0823-213 | PLATE,MOVABLE DRIVE FACE | 1 | $30.95 | |
| 12 | 0823-214 | DAMPER,MOVABLE DRIVE FACE | 1 | $20.63 | |
| 13 | 3306-843 | ROLLER COMP WEIGHT 15g (GREEN) | 1 | $6.89 | |
| 14 | 3323-165 | NUT FLANGE 16mm Z&Y | 1 | $12.35 | |
| 16 | 0827-058 | NUT,FLANGE 16MM,DRIVE-SHAFT | 1 | $3.02 |
