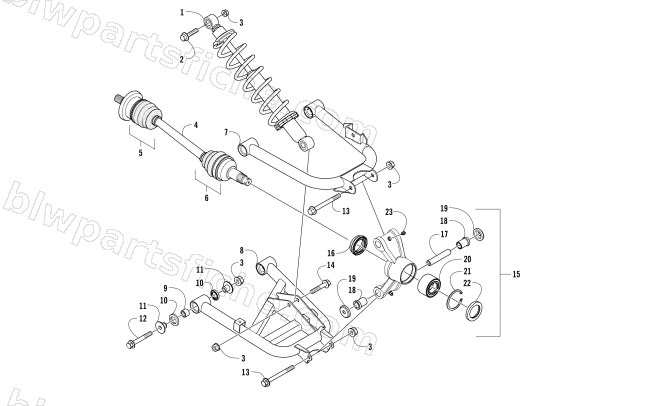

2017 Arctic Cat PROWLER 500 — REAR SUSPENSION ASSEMBLY
2017 PROWLER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3306-818 | BOLT FLANGE 10*60 | 1 | $5.09 | |
| 3 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 14 | 3304-595 | BOLT FLANGE 10*50 | 1 | $2.61 | |
| 20 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 21 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 23 | 3303-393 | NIPPLE GREASE | 1 | $6.75 |
