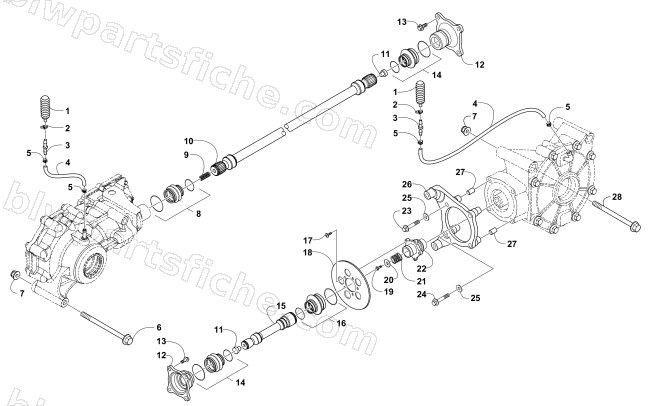

DRIVE TRAIN ASSEMBLY
2017 PROWLER 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3313-796 | BREATH TUBE RR GEAR ASSY | 1 | $66.95 | |
| 2 | 3303-349 | CLIP B10 TUBE | 1 | $0.95 | |
| 3 | 3323-150 | FITTING, BARB HOSE -INTAKE MANIFOLD | 1 | $1.92 | |
| 5 | 3313-684 | CLAMP D9.5 TUBE | 1 | $2.47 | |
| 6 | 3305-787 | BOLT FLANGE 10*110 | 1 | $4.13 | |
| 7 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 11 | 3313-783 | BUMPER DRIVESHAFT | 1 | $1.78 | |
| 12 | 3313-774 | FLANGE OUTPUT | 1 | $69.95 | |
| 13 | 3304-565 | BOLT FLANGE 8*20 | 1 | $1.50 | |
| 16 | 3307-752 | BOOT,REAR PROPELLER SHAFT | 1 | $10.97 | |
| 17 | 3303-253 | BOLT DISK | 1 | $3.57 | |
| 19 | 3304-548 | BOLT FLANGE 10*70 | 1 | $3.30 | |
| 20 | 3304-136 | WASHER PLAIN 10MM | 1 | $0.81 |
