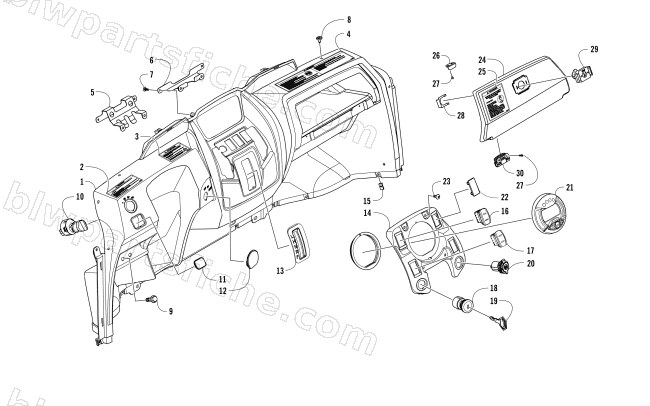

2017 Arctic Cat PROWLER 500 — DASH ASSEMBLY
2017 PROWLER 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 7 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 9 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 15 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 16 | 0409-061 | SWITCH, 2/4/LOCK | 1 | $33.95 | |
| 17 | 0409-071 | SWITCH,REVERSE OVERRIDE | 1 | $47.95 | |
| 20 | 3313-468 | OUTLET,ACCESSORY-12V DC | 1 | $33.95 | |
| 23 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 27 | 3304-651 | SCREW TAPPING 4*12 | 1 | $1.09 | |
| 28 | 2416-984 | CLIP,RETAINER-GLOVE BOX LATCH | 1 | $3.16 |
