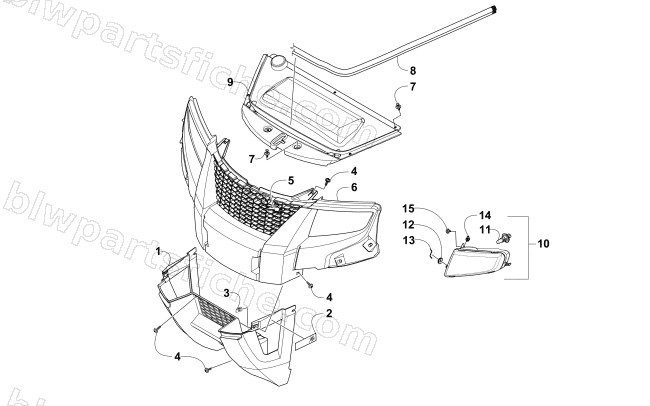

GRILL AND HEADLIGHT ASSEMBLY
2017 PROWLER 1000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 4 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 5 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 6 | 4406-608 | FASCIA,FR UPPER | 1 | $156.95 | |
| 7 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 8 | 4406-885 | SEAL,ACCESS COVER | 1 | $85.95 | |
| 9 | 4406-758 | PANEL,ACCESS-FRONT | 1 | $50.95 | |
| 10 | 0509-102 | HEADLIGHT,HALOGEN/LED-RH (XR XT) | 1 | $169.95 | |
| 10 | 0509-103 | HEADLIGHT,HALOGEN/LED-LH (XR XT) | 1 | $169.95 | |
| 11 | 0409-182 | BULB,HEADLIGHT-H13 HALOGEN | 1 | $50.95 | |
| 12 | 4406-722 | GROMMET-RH | 1 | $2.88 | |
| 12 | 4406-723 | GROMMET-LH | 1 | $2.88 | |
| 13 | 0409-177 | WIREFORM,HEADLIGHT | 1 | $1.92 | |
| 14 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 15 | 2623-113 | SCREW,1" RND KNOB-M5X0.8X15MM LG | 1 | $3.71 |
