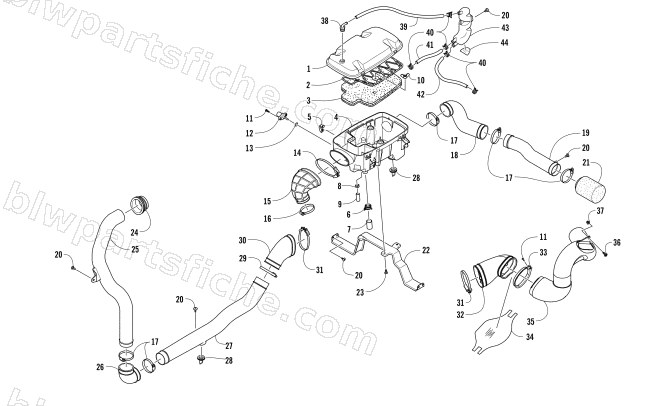

AIR INTAKE ASSEMBLY
2017 PROWLER 1000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0470-861 | R/B 1470-220 | 1 | $99.95 | |
| 2 | 1470-030 | SCREEN,AIR FILTER | 1 | $47.95 | |
| 3 | 1470-029 | FILTER,AIR BOX | 1 | $47.95 | |
| 4 | 0570-395 | BOTTOM,AIR BOX-W/ INSERTS | 1 | $90.95 | |
| 5 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 6 | 1623-287 | CLAMP,HOSE-SPRING (12W X 24) | 1 | $3.44 | |
| 7 | 0423-766 | CAP,DRAIN-AIR BOX | 1 | $2.06 | |
| 8 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 9 | 0470-863 | CAP,DRAIN-AIRBOX | 1 | $2.06 | |
| 11 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 12 | 0430-055 | SENSOR,AIR TEMP | 1 | $30.95 | |
| 13 | 5507-224 | O-RING,AIR TEMP SENSOR | 1 | $6.06 | |
| 14 | 0423-554 | CLAMP,OVAL-( 64x125x15) | 1 | $20.63 | |
| 15 | 0413-353 | BOOT, AIR INTAKE | 1 | $27.95 | |
| 16 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 17 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 18 | 0413-232 | BOOT,AIR BOX | 1 | $37.95 | |
| 19 | 0413-219 | DUCT,INTAKE-CLUTCH (PROWLER) | 1 | $47.95 | |
| 20 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 21 | 0470-834 | FILTER, DUST | 1 | $47.95 | |
| 22 | 2516-166 | BRACKET,MOUNT AIR BOX-BLACK | 1 | $74.95 | |
| 23 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 24 | 2416-088 | GROMMET,CLUTCH INTAKE | 1 | $5.65 | |
| 25 | 0413-361 | DUCT,BELT VENT-FRONT | 1 | $47.95 | |
| 26 | 0413-098 | BOOT,AIR DUCT | 1 | $16.49 | |
| 27 | 0413-236 | DUCT,CLUTCH IN-#1 | 1 | $58.95 | |
| 28 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 29 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 | |
| 30 | 0413-233 | BOOT,CLUTCH-IN | 1 | $30.95 | |
| 31 | 0423-730 | CLAMP,SCREW-OVAL | 1 | $20.63 | |
| 32 | 0413-352 | BOOT, CLUTCH - OUT | 1 | $30.95 | |
| 33 | 0423-550 | CLAMP,PLASTIC-SCREW-OVAL(9x64x13) | 1 | $2.75 | |
| 34 | 0412-836 | SHIELD, HEAT - CLUTCH DUCT EXHAUST | 1 | $5.09 | |
| 35 | 0413-349 | DUCT, CLUTCH EXHUAST (XTZ) | 1 | $64.95 | |
| 36 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 38 | 0470-881 | FITTING,ELBOW-1/4 NPT X1/2 HB (NYLON) | 1 | $3.57 | |
| 39 | 0410-187 | HOSE,VENT-CRANKCASE (11.1 ID X 365 L) | 1 | $23.39 | |
| 40 | 1623-281 | CLAMP,HOSE-SPRING (12W X 18) | 1 | $2.61 | |
| 41 | 0410-221 | HOSE,VENT-CRANKCASE (11.1MM ID X 580 L) | 1 | $30.95 | |
| 42 | 0410-220 | HOSE,VENT-CRANKCASE (11.1MM ID X 435 L) | 1 | $30.95 | |
| 43 | 0470-857 | OIL SEPARATOR | 1 | $47.95 | |
| 44 | 1441-822 | HEAT FOIL,OIL SEPARATOR | 1 | $3.95 |
