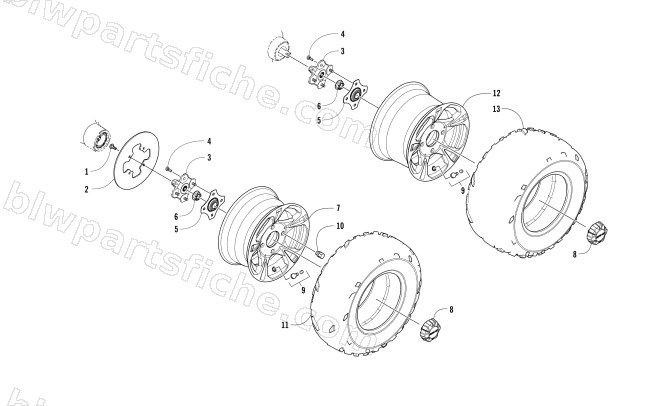

2017 Arctic Cat HDX 700 CREW XT — WHEEL AND TIRE ASSEMBLY
2017 HDX 700 CREW XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-807 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 6 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 7 | 2402-263 | WHEEL,FRT-BLK ALUM-14" (NO CAT) | 1 | $197.95 | |
| 8 | 2402-179 | CAP, WHEEL | 1 | $26.95 | |
| 8 | 2402-277 | CAP,WHEEL | 1 | $27.95 | |
| 9 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 11 | 1402-953 | TIRE,DURO KADEN-26X9R14 | 1 | $211.95 | |
| 12 | 2402-264 | WHEEL,REAR-BLK ALUM-14" (NO CAT) | 1 | $197.95 | |
| 13 | 1402-954 | TIRE,DURO KADEN-26X11R14 | 1 | $220.95 |
