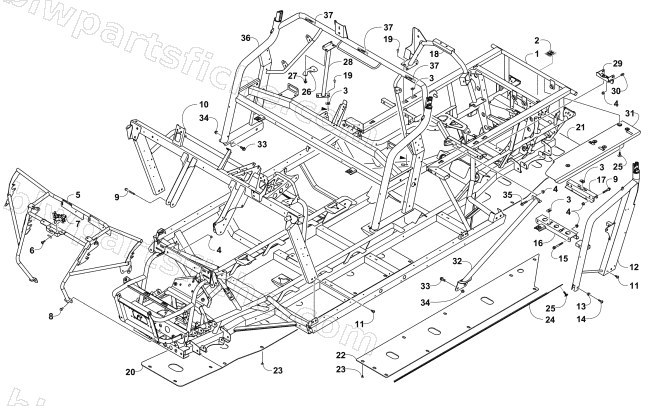

2017 Arctic Cat HDX 700 CREW XT — FRAME AND RELATED PARTS
2017 HDX 700 CREW XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 4411-110 | DECAL,WARNING-TOWING-REAR | 1 | $4.95 | |
| 3 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 4 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 5 | 5506-720 | BUMPER,PTD-BLK | 1 | $215.95 | |
| 6 | 0423-910 | SCREW,TSH-M6-1.0X16-BLK W/PATCH LOCK | 1 | $1.09 | |
| 7 | 4406-624 | LATCH,HOOD | 1 | $53.95 | |
| 8 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 9 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 11 | 0423-817 | SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK | 1 | $1.50 | |
| 13 | 1423-051 | SPACER,STEEL | 1 | $13.73 | |
| 14 | 0423-886 | SCREW, MACH-TSTH M8-1.25X30 BLK- W/PATCH | 1 | $3.02 | |
| 15 | 8408-870 | SCREW,CAP-HFH M8X1.25X70 CL8.8 Z&Y | 1 | $2.61 | |
| 16 | 5506-902 | BRKT, SEAT SUPPORT-FR-RH-PTD BLK | 1 | $64.95 | |
| 16 | 5506-903 | BRKT, SEAT SUPPORT-FR-LH-PTD BLK | 1 | $64.95 | |
| 17 | 1506-842 | BRACKET,SEAT-SUPPORT-REAR-PAINTED BLK | 1 | $23.39 | |
| 19 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 23 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 25 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 26 | 0413-326 | BRACKET,AIR INTAKE | 1 | $8.21 | |
| 27 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 28 | 2516-777 | TUBE,SUPPRT-PTD BLK | 1 | $37.95 | |
| 30 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 33 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 35 | 8477-845 | SCREW,MACH-TSTRH M8X1.25X45 Z&BLK | 1 | $3.44 | |
| 37 | 3411-253 | DECAL,WARNING-REAR-PASSENGER | 1 | $10.97 |
