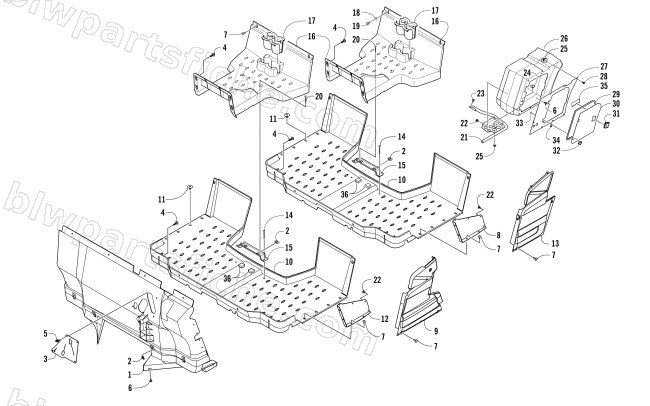

2017 Arctic Cat HDX 700 CREW XT — CONSOLE AND FLOOR PANEL ASSEMBLY
2017 HDX 700 CREW XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 0405-539 | BOOT,STEERING(POWER) & PEDAL | 1 | $9.59 | |
| 4 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 5 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 11 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 12 | 7506-100 | BRKT,KICK PANEL MTG-RH-PTD | 1 | $20.63 | |
| 12 | 7506-101 | BRKT,KICK PANEL MTG-LH-PTD | 1 | $20.63 | |
| 13 | 4406-612 | PANEL,SIDE-RR-RH | 1 | $66.95 | |
| 13 | 4406-613 | PANEL,SIDE-RR-LH | 1 | $50.95 | |
| 14 | 8468-670 | SCREW,MACH-TSPNH M6X1.0X70 CL8.8 BLK | 1 | $3.02 | |
| 15 | 2416-483 | BRKT,SUB-FLOOR MOUNTING | 1 | $26.95 | |
| 16 | 2416-412 | FLOOR, SUB | 1 | $275.95 | |
| 17 | 2416-109 | GROMMET,CUPHOLDER | 1 | $37.95 | |
| 18 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 19 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 20 | 8468-655 | SCREW,MACH-TSPNH M6X1.0X55 CL8.8 BLK | 1 | $1.30 | |
| 21 | 2516-854 | SUPPORT-SIDE-STORAGE-RH PTD BLK | 1 | $54.95 | |
| 21 | 2516-855 | SUPPORT-SIDE-STORAGE-LH PTD BLK | 1 | $54.95 | |
| 22 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 23 | 8476-816 | SCREW,MACH-TSTRH M8X1.25X16 Z&Y | 1 | $3.85 | |
| 24 | 1423-133 | SCREW,SHOULDER 11 X 3.5 X 6MM | 1 | $3.44 | |
| 26 | 7506-054 | BOX,SIDE STORAGE-RH-SERV ASSY | 1 | $390.95 | |
| 26 | 7506-055 | BOX,SIDE STORAGE-LH-SERV ASSY | 1 | $390.95 | |
| 27 | 7506-052 | PLATE,FACE-SIDE STORAGE-PTD BLK | 1 | $47.95 | |
| 28 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 29 | 2416-504 | SEAL,DOOR-SIDE STORAGE | 1 | $3.57 | |
| 30 | 2516-853 | DOOR,SIDE STORAGE-PTD BLACK | 1 | $42.95 | |
| 31 | 1423-035 | LATCH,SLIDE | 1 | $16.49 | |
| 32 | 1423-037 | HINGE,FRICTION | 1 | $23.39 | |
| 34 | 1423-036 | SPACER, HINGE | 1 | $3.30 | |
| 35 | 4411-573 | DECAL,CAUTION LOAD CAPACITY (15LB) | 1 | $3.44 | |
| 36 | 1406-790 | PAD,TAILLIGHT | 1 | $1.50 |
