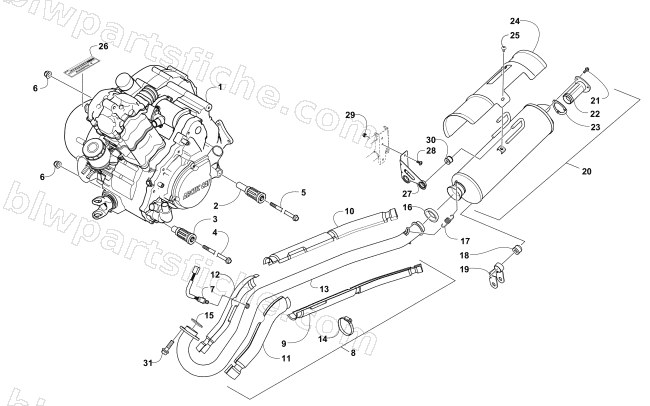

ENGINE AND EXHAUST
2017 ALTERRA TRV 700 XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0801-129 | MOUNT,RUBBER-ENGINE | 1 | $37.95 | |
| 3 | 0801-122 | MOUNT,RUBBER,ENGINE-LONG | 1 | $58.95 | |
| 4 | 0423-405 | SCREW,CAP-HFH M10X1.25X215 CL10.9 Z&Y | 1 | $6.34 | |
| 5 | 0423-451 | SCREW,CAP-HFH M10X1.25X190 CL10.9 Z&Y | 1 | $5.95 | |
| 8 | 0512-623 | PIPE,EXHAUST-ASSEMBLY | 1 | $324.95 | |
| 9 | 0412-355 | SHIELD,EXHAUST-LOWER | 1 | $42.95 | |
| 10 | 0412-354 | SHIELD,EXHAUST-UPPER | 1 | $32.95 | |
| 11 | 0412-686 | SHIELD,EXHAUST PIPE | 1 | $30.95 | |
| 12 | 0412-687 | SHIELD,EXHAUST PIPE | 1 | $30.95 | |
| 13 | 0512-624 | PIPE,EXHAUST-BLACK | 1 | $203.95 | |
| 14 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 15 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 16 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 17 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 18 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 19 | 1506-732 | CHANNEL,MUFFLER SUPPORT-BLACK | 1 | $23.39 | |
| 20 | 0512-355 | MUFFLER-PAINTED | 1 | $509.95 | |
| 21 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 22 | 0512-219 | SPARK ARRESTER-ASSEMBLY | 1 | $58.95 | |
| 23 | 0412-313 | GASKET,SPARK ARRESTER | 1 | $26.95 | |
| 24 | 0412-373 | COVER,MUFFLER | 1 | $45.95 | |
| 25 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 26 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 28 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 29 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 30 | 0412-544 | GROMMET,EXHAUST HANGER | 1 | $3.30 | |
| 31 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 |
