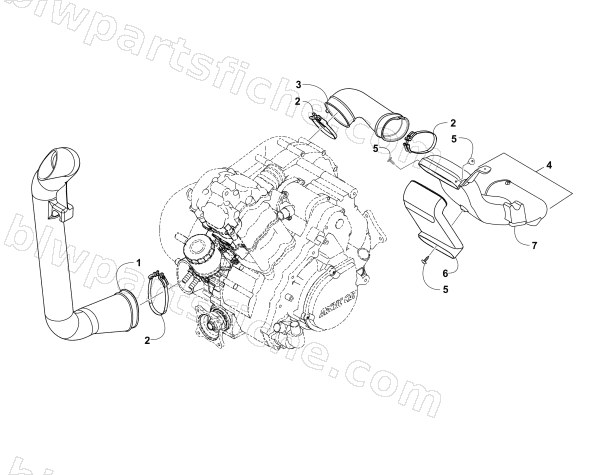

2017 Arctic Cat ALTERRA TRV 550 XT EPS — CASE/BELT COOLING ASSEMBLY
2017 ALTERRA TRV 550 XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0423-730 | CLAMP,SCREW-OVAL | 1 | $20.63 | |
| 3 | 0413-206 | BOOT,COOLING BELT | 1 | $30.95 | |
| 4 | 0470-824 | DUCT,BELT COOLING-AIR OUT | 1 | $54.95 | |
| 6 | 0470-778 | DUCT,AIR OUT-SECONDARY | 1 | $50.95 | |
| 7 | 0470-825 | DUCT,AIR OUT-PRIMARY | 1 | $50.95 |
