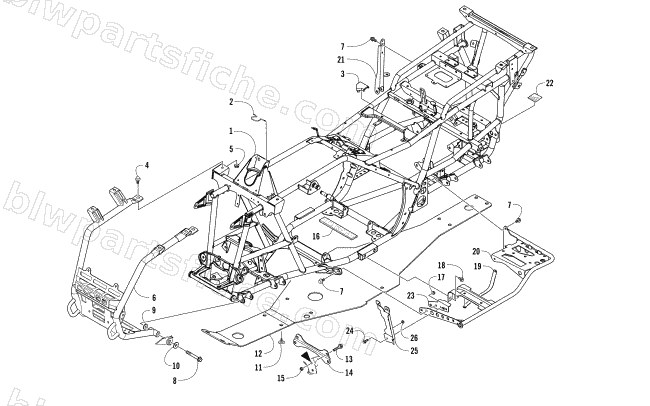

2017 Arctic Cat ALTERRA TRV 500 — FRAME AND RELATED PARTS
2017 ALTERRA TRV 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2416-401 | CLIP,WIRE HARNESS | 1 | $3.44 | |
| 4 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 5 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 7 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 11 | 1423-109 | SCREW,SELF TAP-TSTRH MR6X1.0X16 | 1 | $2.75 | |
| 12 | 2406-091 | PANEL,BELLY | 1 | $187.95 | |
| 13 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 14 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 16 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 17 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 18 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 19 | 2406-216 | STRAP,FOOTREST SUPPORT-RH | 1 | $20.63 | |
| 19 | 2406-217 | STRAP,FOOTREST SUPPORT-LH | 1 | $20.63 | |
| 20 | 1506-848 | FOOTREST,RH-WELDMENT | 1 | $156.95 | |
| 20 | 1506-849 | FOOTREST,LH-WELDMENT | 1 | $156.95 | |
| 22 | 4411-550 | DECAL,WARNING-TOWING-1050 LB | 1 | $4.95 | |
| 24 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 26 | 0406-877 | BUMPER,SEAT | 1 | $3.57 |
