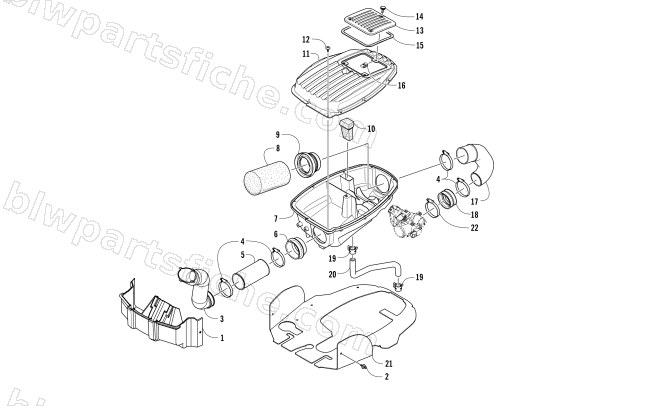

2017 Arctic Cat ALTERRA TRV 500 — AIR INTAKE ASSEMBLY
2017 ALTERRA TRV 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 4 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 5 | 0470-875 | DUCT,INTAKE-DIVERTER:AIRBOX | 1 | $22.01 | |
| 6 | 0470-869 | BOOT,INTAKE-1-450 | 1 | $10.97 | |
| 7 | 0470-872 | BOTTOM, AIRBOX | 1 | $90.95 | |
| 8 | 0470-890 | FILTER,AIR-UNI | 1 | $47.95 | |
| 9 | 0470-888 | BOOT,HOUSING-FILTER | 1 | $10.97 | |
| 10 | 0470-891 | FILTER,CRANKCASE VENT | 1 | $3.16 | |
| 12 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 14 | 0423-996 | THUMB SCREW,M5X0.8X16 | 1 | $3.71 | |
| 15 | 0470-892 | SEAL,ACCESS COVER | 1 | $20.63 | |
| 16 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 17 | 0470-876 | DUCT,INTAKE-AIRBOX:T-BODY | 1 | $20.63 | |
| 18 | 0470-871 | BOOT,INTAKE-3-450 | 1 | $10.97 | |
| 19 | 1623-281 | CLAMP,HOSE-SPRING (12W X 18) | 1 | $2.61 | |
| 20 | 0410-087 | HOSE,VENT-CRANKCASE | 1 | $16.49 | |
| 22 | 0423-832 | CLAMP,HOSE-WORM DR-35-55/9mm | 1 | $5.51 |
