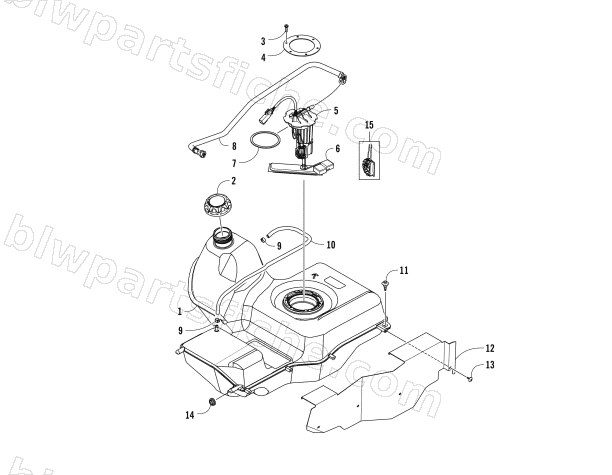

2017 Arctic Cat ALTERRA TRV 1000 XT EPS — GAS TANK ASSEMBLY
2017 ALTERRA TRV 1000 XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1470-185 | CAP,FUEL TANK | 1 | $33.95 | |
| 3 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 4 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 5 | 0570-433 | FUEL PUMP KIT | 1 | $485.95 | |
| 6 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 7 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 8 | 0570-282 | HOSE,FUEL-ASSEMBLY | 1 | $156.95 | |
| 9 | 0423-688 | CLAMP,SNAP-10 MM | 1 | $2.33 | |
| 10 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 11 | 0423-732 | SCREW,FUEL TANK | 1 | $2.61 | |
| 12 | 0470-822 | SHIELD,FUEL TANK | 1 | $82.95 | |
| 14 | 0423-460 | GROMMET, FUEL TANK | 1 | $4.26 |
