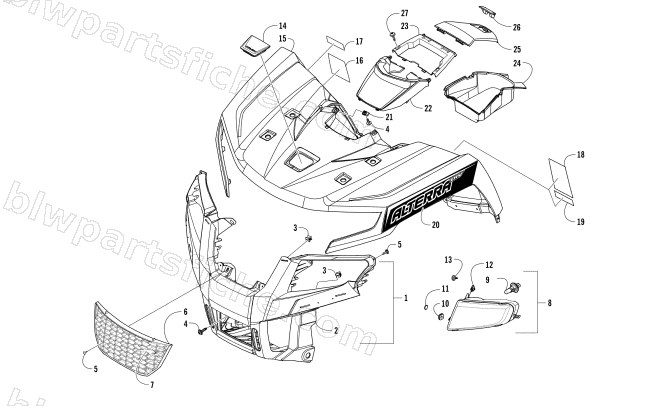

FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES
2017 ALTERRA TRV 1000 XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 1423-321 | CLIP,RETAINING | 1 | $0.54 | |
| 4 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 5 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 | |
| 6 | 4406-990 | GRILL,FRONT-151 ATV (13.5 mm TABS) | 1 | $20.63 | |
| 7 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 8 | 0509-102 | HEADLIGHT,HALOGEN/LED-RH (XR XT) | 1 | $169.95 | |
| 8 | 0509-103 | HEADLIGHT,HALOGEN/LED-LH (XR XT) | 1 | $169.95 | |
| 9 | 0409-182 | BULB,HEADLIGHT-H13 HALOGEN | 1 | $50.95 | |
| 10 | 4406-722 | GROMMET-RH | 1 | $2.88 | |
| 10 | 4406-723 | GROMMET-LH | 1 | $2.88 | |
| 11 | 1423-326 | O-RING,D:.116 ID: .924-EPDM (3-912) | 1 | $2.75 | |
| 12 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 13 | 2623-113 | SCREW,1" RND KNOB-M5X0.8X15MM LG | 1 | $3.71 | |
| 14 | 4406-784 | PLUG,ACCESS COOLING | 1 | $6.89 | |
| 17 | 1411-906 | DECAL,WARNING-THROTTLE | 1 | $16.49 | |
| 18 | 2411-259 | DECAL,WARNING-TRV GENERAL 16 | 1 | $16.49 | |
| 19 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 21 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 27 | 1423-221 | SCREW, M6X1.0 DOG-POINT | 1 | $1.37 |
