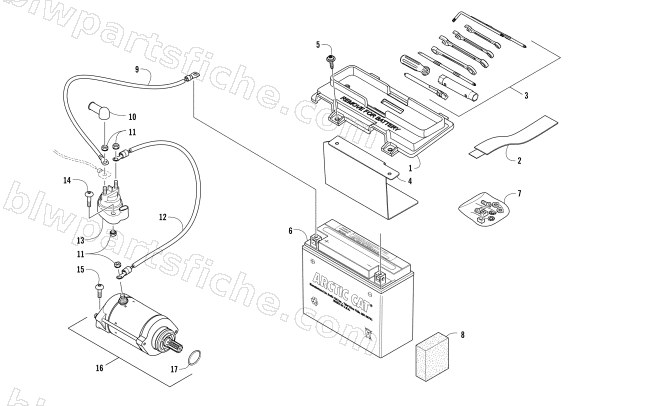

BATTERY AND STARTER ASSEMBLY
2017 ALTERRA TRV 1000 XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0444-291 | RETAINER,VELCRO (2" X 9") | 1 | $10.97 | |
| 3 | 4406-599 | KIT,TOOL | 1 | $85.95 | |
| 5 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 6 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 7 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 8 | 0417-017 | FOAM,BATTERY | 1 | $1.92 | |
| 9 | 0445-062 | CABLE,BATTERY-SOLENOID (8.5" RED #6) | 1 | $9.59 | |
| 10 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 11 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 12 | 0445-066 | CABLE,SOLENOID-STARTER (56" RED #6) | 1 | $45.95 | |
| 13 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 14 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 15 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 16 | 0825-024 | MOTOR,STARTER-ENGINE (PD 11.25) | 1 | $268.95 | |
| 17 | 0830-228 | O-RING,33.5MMX3MM | 1 | $5.09 |
