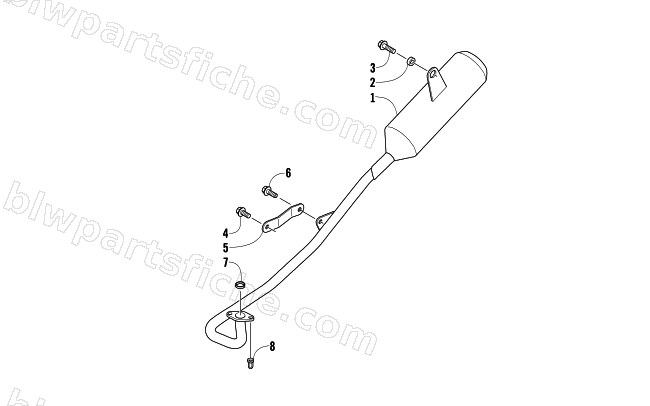

EXHAUST ASSEMBLY
2017 ALTERRA 90
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-407 | MUFFLER COMP EXHAUST | 1 | $226.95 | |
| 2 | 3304-571 | RUBBER BUSH MUFFER STAY | 1 | $4.40 | |
| 3 | 3305-845 | BOLT,FLANGE 8X38 | 1 | $2.61 | |
| 4 | 3303-314 | BOLT WASHER 8*28 **(0) C.2004.03.18 | 1 | $1.50 | |
| 5 | 3304-573 | STAY MUFFLER | 1 | $16.49 | |
| 6 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 7 | 3303-071 | GASKET EXH PIPE | 1 | $3.30 | |
| 8 | 3303-261 | NUT CAP 8MM | 1 | $4.13 |
