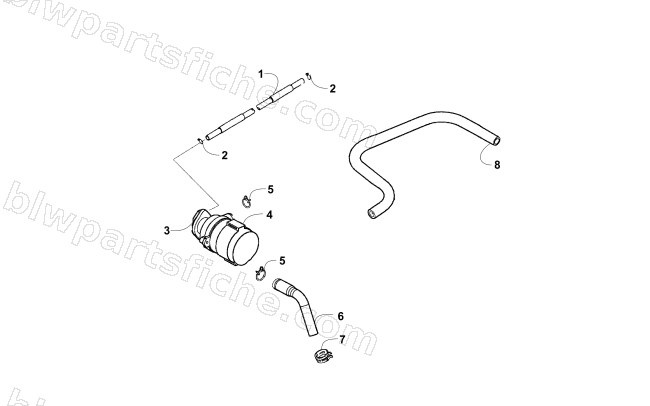

EXHAUST AIR INTAKE ASSEMBLY
2017 ALTERRA 90
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-596 | TUBE ASSY,VACUUM | 1 | $13.73 | |
| 2 | 3304-161 | CLIP B7 TUBE | 1 | $1.37 | |
| 3 | 3305-599 | AI/C-AICV ASSY | 1 | $58.95 | |
| 4 | 3305-355 | RUBBER AICV MOUNT | 1 | $3.95 | |
| 5 | 3303-712 | CLIP BREATHER TUBE | 1 | $2.33 | |
| 6 | 3305-597 | DUCT,AICV-REED VALVE | 1 | $20.63 | |
| 7 | 3304-167 | CLAMP D18 TUBE | 1 | $3.57 | |
| 8 | 3305-598 | DUCT,AIR-AICV | 1 | $19.25 |
