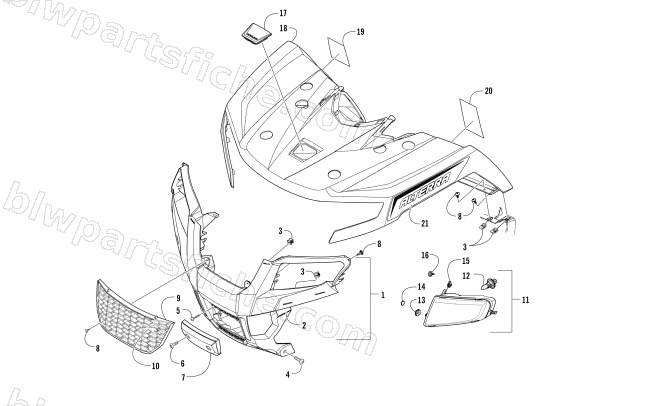

FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES
2017 ALTERRA 700 XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-753 | FASCIA,FRONT-W/REFLECTORS | 1 | $163.95 | |
| 2 | 4411-168 | REFLECTOR,FRONT-RH | 1 | $5.92 | |
| 2 | 4411-169 | REFLECTOR,FRONT-LH | 1 | $5.92 | |
| 3 | 1423-321 | CLIP,RETAINING | 1 | $0.54 | |
| 4 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 5 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 6 | 8468-820 | SCREW,MACH-TSPNH M8X1.25X20 CL8.8 BLK | 1 | $1.50 | |
| 7 | 4406-584 | COVER,WINCH | 1 | $37.95 | |
| 8 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 | |
| 9 | 4406-990 | GRILL,FRONT-151 ATV (13.5 mm TABS) | 1 | $20.63 | |
| 10 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 11 | 0509-102 | HEADLIGHT,HALOGEN/LED-RH (XR XT) | 1 | $169.95 | |
| 11 | 0509-103 | HEADLIGHT,HALOGEN/LED-LH (XR XT) | 1 | $169.95 | |
| 12 | 0409-182 | BULB,HEADLIGHT-H13 HALOGEN | 1 | $50.95 | |
| 13 | 4406-722 | GROMMET-RH | 1 | $2.88 | |
| 13 | 4406-723 | GROMMET-LH | 1 | $2.88 | |
| 14 | 1423-326 | O-RING,D:.116 ID: .924-EPDM (3-912) | 1 | $2.75 | |
| 15 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 16 | 2623-113 | SCREW,1" RND KNOB-M5X0.8X15MM LG | 1 | $3.71 | |
| 17 | 4406-784 | PLUG,ACCESS COOLING | 1 | $6.89 | |
| 18 | 7506-144 | FENDER,FRONT-TRUE TIMBER HTC-ASSY | 1 | $1,013.95 | |
| 18 | 5506-781 | FENDER,FRONT-VIBRANT RED METALLIC-ASSY | 1 | $909.95 | |
| 19 | 4411-672 | R/B 6411-422 | 1 | $13.95 | |
| 20 | 4411-673 | DECAL,WARNING-FRONT FENDER-LH | 1 | $8.21 |
