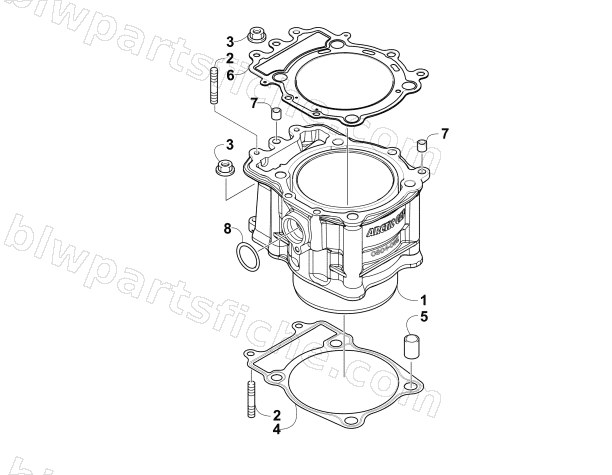

CYLINDER ASSEMBLY
2017 ALTERRA 700 XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0804-065 | CYLINDER,700H1 | 1 | $1,156.95 | |
| 2 | 0827-002 | STUD, M6 x 1 x 38 | 1 | $2.47 | |
| 3 | 8424-604 | NUT,HEX-FLG M6X1.0 CL8 RIE SIL | 1 | $0.54 | |
| 4 | 0830-111 | GASKET,BASE | 1 | $20.63 | |
| 5 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 6 | 0830-225 | GASKET,HEAD-700 EFI (GIL) | 1 | $63.95 | |
| 7 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 8 | 0830-007 | O-RING, 21.9 ID X 2.7 W | 1 | $0.68 |
