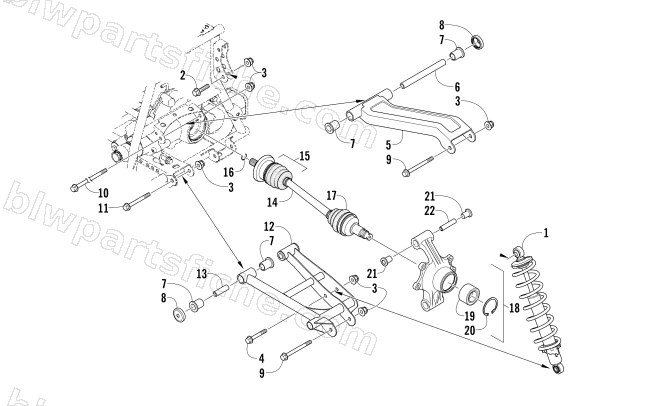

REAR SUSPENSION ASSEMBLY
2017 ALTERRA 400
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3307-769 | CUSHION ASSY RR (WHITE) | 1 | $350.95 | |
| 2 | 3307-068 | BOLT FLANGE 10*40 | 1 | $5.09 | |
| 3 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 4 | 3307-070 | BOLT FLANGE 10*65 | 1 | $5.09 | |
| 5 | 3306-872 | CONTROL ARM RH UPPER ASSY (BLACK) | 1 | $122.95 | |
| 5 | 3306-873 | CONTROL ARM LH UPPER ASSY (BLACK) | 1 | $118.95 | |
| 6 | 3313-111 | SLEEVE,SUSPENSION | 1 | $16.49 | |
| 7 | 3313-112 | BUSHING,SUSPENSION | 1 | $2.33 | |
| 8 | 3313-113 | SEAL,SUSPENSION | 1 | $3.44 | |
| 9 | 3323-188 | SCREW,CAP HFH M10X1.25X95 | 1 | $3.30 | |
| 10 | 3313-430 | SCREW,CAP-HFH M10 X 1.25 | 1 | $16.49 | |
| 11 | 3304-183 | SCREW,CAP-HFH M10X1.25X85 | 1 | $2.59 | |
| 12 | 3313-136 | A-ARM,RH LOWER-ASSEMBLY (BLACK) | 1 | $169.95 | |
| 12 | 3313-137 | A-ARM,LH LOWER-ASSEMBLY (BLACK) | 1 | $169.95 | |
| 13 | 3313-107 | SLEEVE,SUSPENSION | 1 | $12.35 | |
| 14 | 3313-832 | HALFSHAFT,REAR | 1 | $459.95 | |
| 15 | 3313-560 | DIFF SIDE BOOT SERVICE KIT(IN BOARD) | 1 | $94.95 | |
| 17 | 3306-425 | WHEEL SIDE BOOT SERVICE KIT | 1 | $94.95 | |
| 18 | 3323-108 | KNUCKLE,REAR ASSEMBLY (LH) | 1 | $279.95 | |
| 18 | 3323-109 | KNUCKLE,REAR-ASSEMBLY (RH) | 1 | $279.95 | |
| 19 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 20 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 21 | 0403-283 | BUSHING,REAR SUSPENSION | 1 | $2.75 | |
| 22 | 0403-213 | R/B 0403-437 | 1 | $5.49 |
