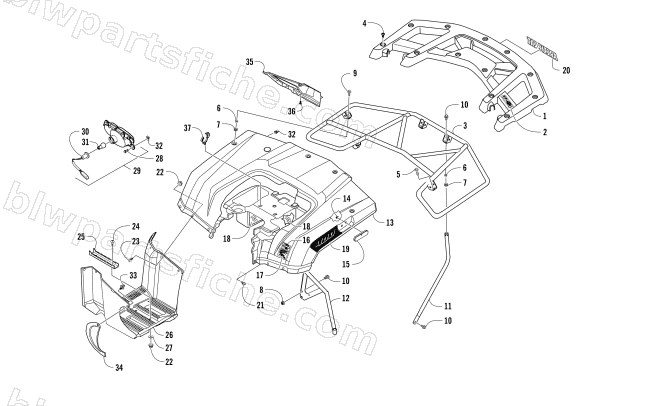

2017 Arctic Cat ALTERRA 400 — REAR BODY, RACK, AND TAILLIGHT ASSEMBLY
2017 ALTERRA 400
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1411-682 | DECAL,WARNING RACK (150LB) | 1 | $17.87 | |
| 4 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 5 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 6 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 7 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 8 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 9 | 3313-522 | BOLT,M8*25 | 1 | $1.78 | |
| 10 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 13 | 3307-773 | FENDER,REAR-W/DECALS (GREEN) | 1 | $567.95 | |
| 14 | 3304-774 | NUT FLANGE 5MM(G) | 1 | $0.81 | |
| 15 | 3313-360 | REFLECTOR,REAR (OVAL) | 1 | $13.73 | |
| 16 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 17 | 5411-998 | DECAL,TIRE PRESSURE | 1 | $5.92 | |
| 19 | 5411-958 | DECAL,REAR-400-RH-GREEN (ALT 400) | 1 | $23.39 | |
| 19 | 5411-959 | DECAL,REAR-400-LH-GREEN (ALT 400) | 1 | $23.39 | |
| 21 | 3305-783 | BOLT WASHER 8*16 | 1 | $3.02 | |
| 22 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 23 | 3305-703 | SCREW SPECIAL 6*20 | 1 | $1.78 | |
| 24 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 25 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 27 | 3305-852 | WASHER,PLAIN 6MM | 1 | $0.81 | |
| 28 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 31 | 3303-849 | BULB TAIL & STOP 12V21W/5W | 1 | $12.35 | |
| 32 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 33 | 3305-448 | CLIP,MUDGUARD | 1 | $2.33 | |
| 36 | 3304-645 | SCREW TAPPING 5*12 | 1 | $1.23 |
