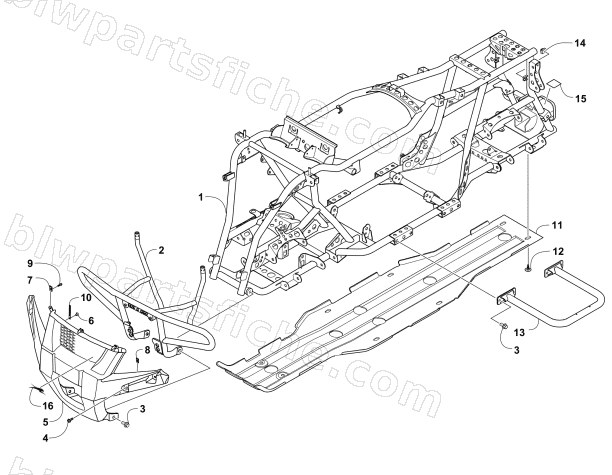

2017 Arctic Cat ALTERRA 400 — FRAME AND RELATED PARTS
2017 ALTERRA 400
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 4 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 6 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 7 | 3303-267 | NUT CLIP 6MM **0000 C.97.07.26. | 1 | $1.23 | |
| 8 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 9 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 10 | 3304-157 | CLIP 2*70 | 1 | $1.92 | |
| 11 | 3313-755 | PLATE SKID | 1 | $74.95 | |
| 12 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 13 | 3313-351 | FOOTREST-BLACK | 1 | $66.95 | |
| 14 | 3306-329 | STOPPER RUBBER | 1 | $2.75 | |
| 15 | 1411-077 | R/B 4411-550 | 1 | $3.95 | |
| 16 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 |
