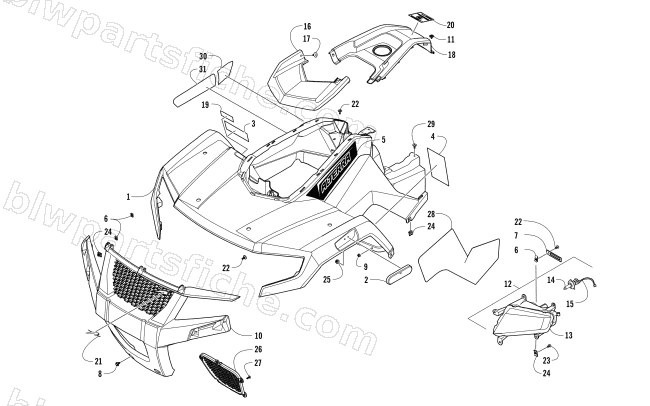

2017 Arctic Cat ALTERRA 300 — FRONT BODY AND HEADLIGHT ASSEMBLY
2017 ALTERRA 300
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3307-803 | FENDER FRONT-GREEN-W/DECALS | 1 | $305.95 | |
| 1 | 3307-805 | FENDER FRONT-RED-W/DECALS | 1 | $371.95 | |
| 2 | 3307-825 | REFLEX REFLECTOR | 1 | $9.59 | |
| 3 | 4411-818 | R/B 6411-412 | 1 | $1.59 | |
| 4 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 5 | 6411-029 | DECAL,SIDE-LH-GREEN (ALT 300) | 1 | $36.95 | |
| 5 | 6411-031 | DECAL,SIDE-LH-RED (ALT 300) | 1 | $36.95 | |
| 6 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 7 | 3304-157 | CLIP 2*70 | 1 | $1.92 | |
| 8 | 3304-651 | SCREW TAPPING 4*12 | 1 | $1.09 | |
| 9 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 10 | 3307-808 | MUDGUARD FRONT | 1 | $50.95 | |
| 11 | 3304-057 | CLIP FENDER | 1 | $1.92 | |
| 12 | 3307-854 | LIGHT ASS'Y HEAD R | 1 | $206.95 | |
| 12 | 3307-855 | LIGHT ASS'Y HEAD L | 1 | $206.95 | |
| 14 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 15 | 3305-136 | R/B 3306-762 | 1 | $0.00 | |
| 16 | 3307-796 | COVER FRONT (BLACK) | 1 | $16.49 | |
| 17 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 | |
| 18 | 3307-795 | COVER TANK (BLACK) | 1 | $20.63 | |
| 19 | 1411-577 | DECAL,WARNING-OFF ROAD ONLY | 1 | $50.95 | |
| 20 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 21 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 22 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 24 | 3303-267 | NUT CLIP 6MM **0000 C.97.07.26. | 1 | $1.23 | |
| 25 | 3304-774 | NUT FLANGE 5MM(G) | 1 | $0.81 | |
| 26 | 3307-797 | ACCESS PANEL RADIATOR | 1 | $9.59 | |
| 27 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 28 | 3307-809 | SHIELD LH | 1 | $45.95 | |
| 29 | 3304-404 | BOLT SPECIAL 6*16 | 1 | $1.78 | |
| 30 | 5411-948 | DECAL,SIDE-PIECE ONE-RH-GREEN (ALT 300) | 1 | $16.49 | |
| 30 | 5411-950 | DECAL,SIDE-PIECE ONE-RH-RED (ALT 300) | 1 | $16.95 | |
| 31 | 6411-028 | DECAL,SIDE-PIECE TWO-RH-GREEN (ALT 300) | 1 | $26.95 | |
| 31 | 6411-030 | DECAL,SIDE-PIECE TWO-RH-RED (ALT 300) | 1 | $26.95 |
