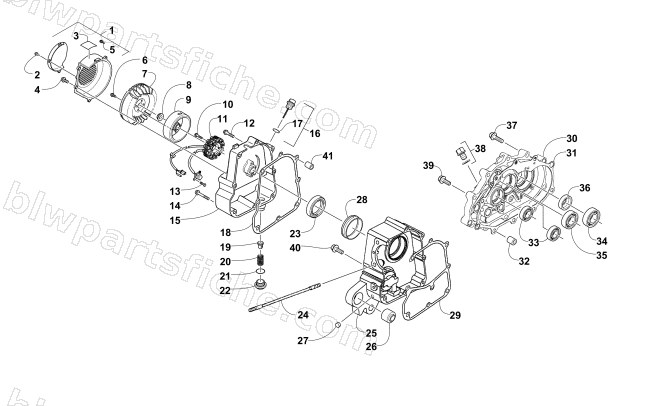

RIGHT CRANKCASE AND COVER ASSEMBLY
2017 90 2X4 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-910 | COVER ASSY FAN | 1 | $20.63 | |
| 2 | 3304-651 | SCREW TAPPING 4*12 | 1 | $1.09 | |
| 3 | 2411-052 | DECAL,SHIFT | 1 | $17.87 | |
| 4 | 3307-050 | BOLT FLANGE SH 6*25 | 1 | $2.75 | |
| 5 | 3304-585 | SCREW TAPPING 5X16 (SQUARE HEAD) | 1 | $0.81 | |
| 6 | 3307-061 | BOLT FLANGE SH 6*16 | 1 | $2.75 | |
| 7 | 3303-075 | FAN COMP COOLING **(0) C.98.08.12. | 1 | $20.63 | |
| 8 | 3307-058 | NUT FLANGE 10MM | 1 | $5.09 | |
| 9 | 3303-127 | FLYWHEEL COMP **C.2003.08.14 (D402) | 1 | $131.95 | |
| 9 | 3303-414 | FLYWHEEL COMP (D406) | 1 | $123.95 | |
| 9 | 3303-415 | R/B 3303-127 | 1 | $123.95 | |
| 10 | 3304-189 | BOLT FLANGE SH 6*20 | 1 | $0.81 | |
| 11 | 3304-641 | STATOR COMP (D402) | 1 | $196.95 | |
| 11 | 3305-254 | STATOR COMP (D406) | 1 | $196.95 | |
| 11 | 3305-256 | STATOR COMP (D414) | 1 | $196.95 | |
| 12 | 3304-580 | BOLT FLANGE 6X85 | 1 | $3.02 | |
| 13 | 3307-059 | BOLT HEX 5*12 (G) | 1 | $2.75 | |
| 15 | 3303-007 | COVER R CRANKCASE **(0) C.2003.01.03 | 1 | $108.95 | |
| 16 | 3303-050 | GAUGE ASSY OIL LEVEL | 1 | $6.75 | |
| 17 | 3304-102 | O-RING 18*3 | 1 | $1.78 | |
| 18 | 3303-012 | GASKET R COVER A | 1 | $16.49 | |
| 19 | 3303-691 | SCREEN OIL FILTER | 1 | $5.51 | |
| 20 | 3303-692 | SPG OIL FILTER SCREEN | 1 | $33.95 | |
| 21 | 3304-096 | O-RING 30.8MM | 1 | $1.78 | |
| 22 | 3303-021 | HOLE CAP TAPPET ADJUSTING **9000 C.97.09 | 1 | $16.49 | |
| 23 | 3303-296 | OIL SEAL 19.8*30*5 **9000-M2 | 1 | $20.63 | |
| 24 | 3303-247 | BOLT A STUD 8*182.5 | 1 | $5.95 | |
| 25 | 3303-400 | CRANK CASE SET RIGHT | 1 | $156.95 | |
| 26 | 3303-402 | RUBBER BUSH ENG HANGER | 1 | $6.47 | |
| 27 | 3304-065 | CONE TYPE PLUG 6*7 | 1 | $1.37 | |
| 29 | 3303-003 | GASKET CRANK CASE A | 1 | $12.35 | |
| 30 | 3305-806 | CASE,TRANSMISSION | 1 | $423.95 | |
| 31 | 3305-807 | GASKET,TRANSMISSION | 1 | $20.63 | |
| 32 | 3303-342 | PIN DOWEL 10*16 | 1 | $1.64 | |
| 33 | 3303-596 | BRG BALL RADIAL/6201 | 1 | $37.95 | |
| 34 | 3305-821 | BEARING,BALL | 1 | $30.95 | |
| 35 | 3304-909 | BRG BALL RADIAL 6302 | 1 | $20.63 | |
| 36 | 3305-808 | OIL SEAL 22X32X6 | 1 | $16.49 | |
| 37 | 3305-513 | BOLT FLANGE 8*40(G) | 1 | $1.78 | |
| 38 | 3304-052 | BOLT DRAIN PLUG SPECIAL | 1 | $3.02 | |
| 39 | 3303-616 | BOLT FLANGE 8*35 | 1 | $1.78 | |
| 40 | 3303-387 | BOLT FLANGE SH 6*45 | 1 | $3.95 | |
| 41 | 3303-341 | PIN DOWEL 8*14 | 1 | $2.33 |
